IE Connecting Rod Set for VW & Audi MK7 | MQB 2.0T With Aftermarket Pistons - (NLA)


No Longer Available Discontinued
Part# IERHVN1 is NO LONGER AVAILABLE!

SHOP REPLACEMENT PART

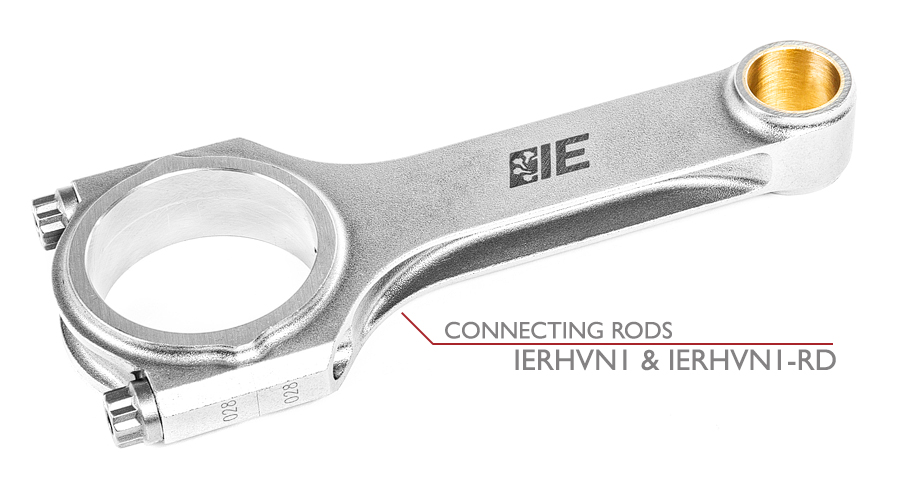

VOLKSWAGEN & AUDI MK7/MQB GEN 3 2.0T CONNECTING RODS

When increasing the power output of your MK7/MQB 2.0T Gen 3 engine, internal parts begin to fail as they are pushed far beyond their original factory spec limits. Integrated Engineering Forged Connecting Rods are designed to replace the factory units and take the beating from today's high-output power modifications. Drive fast and reliably with IE performance rods, guaranteed to support 700HP!MK7 IE rods

APPLICATIONS (REQUIRES AFTERMARKET PISTONS)

  • VW MK7 GTI 2.0T TSI (EA888 Gen 3)
  • VW MK7 Golf R 2.0T TSI (EA888 Gen 3)
  • Audi MK3 A3 2.0T TSI (EA888 Gen 3)
  • Audi MK3 S3 2.0T TSI (EA888 Gen 3)
  • Audi MK3 TT 2.0T TSI (EA888 Gen 3)
  • Audi MK3 TTS 2.0T TSI (EA888 Gen 3)

LEADING FEATURES

  • 22MM WRIST PIN FOR USE WITH AFTERMARKET PERFORMANCE PISTONS
  • FORGED FROM VACUUM DRAWN 2 PIECE 4340 CHROME MOLY STEEL
  • UPGRADED H-BEAM DESIGN GREATLY INCREASES STRENGTH AND DURABILITY
  • COMBINIATION TESTED TO 700BHP ON 4 CYLINDER ENGINES
  • INCLUDES IE SPEC ARP 2000 ROD BOLTS WITH "IE" STAMP TO ENSURE A GENUINE PRODUCT
  • COMPUTER OPTIMIZED DESIGN FOR THE UNIQUE MK7/MQB 2.0T GEN 3 TSI PLATFORM
  • HONED TO EXACTING TOLERANCES WITHIN 250 MILLIONTHS OF AN INCH
  • OPTIONAL FORCED PIN OILING (RIFLE DRILLING) FOR LONG WRIST PIN LONGEVITY
  • EACH CONNECTING ROD SET IS BALANCED TO WEIGHTS WITHIN +/- 1 GRAM
  • DIMENSIONALLY AND MAGNAFLUX INSPECTED FOR EXTREME RELIABILITY
  • MULTI-STAGE HEAT TREATED FOR DIMENSIONAL STABILITY AND FATIGUE LIFE

COMPATIBLE PISTONS

AVAILABLE PISTON SETS IE PART NUMER
IE Spec Mahle Motorsport performance pistons for stock bore with 9.3:1 CR MAH-PVN1
IE SPec Mahle Motorsport performance pistons for 83mm overbore with 9.3:1 CR MAH-PVN2

COMPATIBLE BEARINGS

AVAILABLE BEARING SETS IE PART NUMER
Mahle Motorsport performance rod bearings *Recommended MAH-VC1027
OEM replacement "tanged style" rod bearings OEM-18T-RBSET

TECHNICAL DIMENSIONS

CENTER TO CENTER WRIST PIN DIAMETER BIG END JOURNAL WIDTH WRIST PIN STYLE BIG END JOURNAL DIAMETER AVERAGE ROD WEIGHT (WITH BOLTS) ROD BOLT DIMENSIONS
144mm 22mm 21.90mm Non-tapered 50.60mm 565 grams 3/8" x 1.5" UHL

ADDITIONAL DETAILS

Connecting rods are some of the highest stressed components in an engine and thus require extreme attention to detail to ensure proper operation and reliability. Integrated Engineering ensures the success of your next engine build by putting each set of connecting rods though a rigorous quality control process. For years Integrated Engineering H-beam Rods have been an integral part of delivering the power that the highest powered turbo setups and race engines demand.

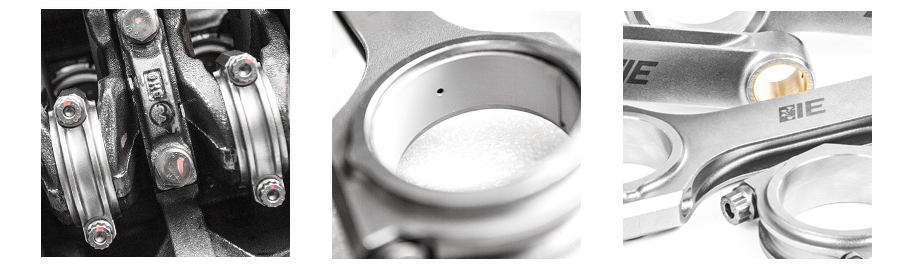

Extra attention has been paid to even the smallest details such as the bearing tangs, wrist pin fit, and big end side clearance, providing a level of fit and finish not found anywhere else. Each and every set is finish machined and honed in-house for perfectly round and on size big-end bores, resulting in the industry's lowest failure rates. All rods in this series feature generous wrist pin oiling, and optional rifle drilling. One of the hallmarks of a high quality connecting rod is its strength to weight ratio. In order to create this balance of strength and light weight, our optimized H beam design is utilized and validated using modern CAD drafting and FEA analysis techniques. These techniques ensure the rod is as light and strong as possible, perfected for today's powerful and high rpm European applications.

hbeam

H BEAM DESIGN:
The H-beam design is the workhorse of our connecting rod product line. This design features strength, durability, stiffness and rigidity. IE H-beam Connecting Rods are a great upgrade over weaker factory units.

honed

HONED IN-HOUSE:
Honing the connecting rod big end in-house on state of the art equipment ensures the tolerances are set correctly to ensure proper bearing operation. Lesser quality rods are often not honed with the same attention to detail.

fea

COMPUTER OPTIMIZED:
All IE rods are designed specifically for the application using relevant cylinder pressure and other application-specific factors. We put our vast European engine knowledge to use when designing each application.

riflefrilled

RIFLE DRILLING:
Also referred to as Forced Pin Oiling (FPO), rifle drilling increases wrist pin longevity by providing additional lubrication. This upgrade is highly recommended for street-driven cars that see mileage put on them. Rifle drilling is sold separately on this application.

arp

IE/ARP ROD BOLTS:
All IE rods come standard with ARP 2000 rod bolts. The rod bolts included in every set of IE rods are stamped with the letters "IE" as a way to ensure you have a genuine set of IE rods.

forged

MATERIAL FORGED 4340:
Made from strong and durable 2 piece 4340 forgings these rods will withstand almost everything you can throw at them.

forged mk7 rods

FAQ

-Are these are direct replacement for my factory rods?
These rods fit several VW & Audi MK7/MQB platform vehicles with the 2.0T EA888 Gen 3 engines. If you are not sure of your engine see the applications list above.

-Is there a proper orientation to install the bearing tangs on our connecting rods?
We recommend installing the bearings tangs facing the exhaust side of the engine.

-Are these connecting rods forged?
Yes, all Integrated Engineering Connecting Rods are made from tough and durable 4340 forgings. These forgings far exceed the quality of most factory rods that are typically made from powdered metal as a cost saving measure.

-What other parts will be needed to install my new IE connecting rod set?
These rods will require aftermarket pistons and at a minimum you should use a new set of connecting rod bearings when installing rods. For more information on pistons and rod bearings, please see the compatible parts section above.

-Do these rods require any additional machine work for installation?
IE connecting rods are delivered to you in "ready to install" condition. Other engine machine work may be required though when rebuilding an engine, such as decking the block or boring and honing cylinder walls.

-Is balancing the engine required when installing these connecting rods?
Since IE rods are sold in balanced sets this is not required. For extreme performance application this can still be done if desired.

-How much do these rods weigh?
The average weight of a single rod with bolts is 548 grams. Rod weights can vary slightly per set. More technical information can be found in the basic dimensions section above as well.

-What is the maximum RPM limit of these rods?
The maximum RPM limit can be affected by many factors. In this application, we suggest not exceeding 8500 RPM with ARP 2000 bolts. If you plan on exceeding this RPM level, consider upgrading to ARP 625+ bolts.

-When should I upgrade to ARP 625+ rod bolts?
Generally speaking, high RPM conditions put the most stress on rod bolts as the rod and cap are literally being pulled in opposite directions. If you plan on pushing your engine far past factory redline or 8500 RPM we would suggest upgrading to 625+ ARP bolts.

-Do I need rifle drilling?
Rifle drilling is not required. However, we do strongly recommend it for daily driver and high mileage applications. Rifle drilling has been proven to extend wrist pin and bushing life and has also been utilized over the years in several VW/Audi factory connecting rods.

-What is the horsepower rating on these connecting rods?
Many high horsepower VW and Audi vehicles use IE rods. We rate our 4 cylinder H-beam rods for 700+ HP/ft lb TQ. If you are planning on exceeding those levels we recommend upgrading to our Tuscan I-beam Rods (part number IERTVT1).

-What pistons will these rods work with?
We stock several high quality piston options to suit your specific needs and to match our connecting rods. To see what we have to offer be sure to see our piston recommendations section above.

-What are the most common reasons of connecting rod failure?
As one of highest stressed components in the engine there are several things that can contribute to a failure. The most common failure is caused by improper installation followed by improper tuning. We recommend that you seek professional help for both installation and tuning. Oiling system health is also essential to ensuring save engine operation, even momentary oil starvation can result in spun rod bearings and engine failure.

About Integrated Engineering: Merging decades of experience with hundreds of hours of prototyping, engineering, dyno testing and daily usage evaluation has output exhaust systems that are the ultimate compliment to your performance car. IE products are proudly engineered, designed, and manufactured in-house, in Salt Lake City USA.
