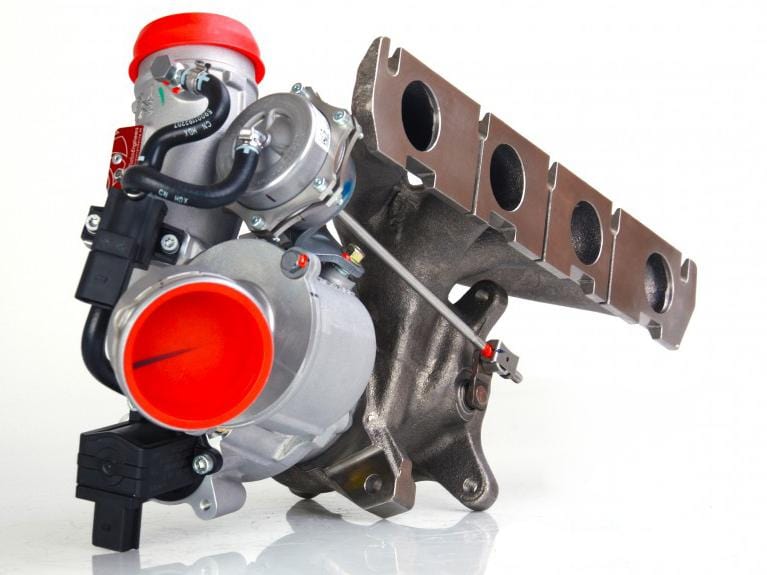

TTE350+ begins as a brand new standard BorgWarner K03 turbocharger that we dismantle and then set about upgrading and optimizing as engineers to create our K03 frame hybrid. The TTE350 Turbocharger bridges the gap for guys wanting K04 power but wanting to keep K03 response and plug & play fitting.
Engineered & Enhanced
The formula to making a TTE350+ starts with using the much larger 2283 BorgWarner billet compressor as fitted as stock in the K04 turbocharger for the likes of the Audi S3 8P, chosen because is highly efficient, newer generation type with extended tip tech, creating extremely high flow for comparative size, giving a compressor map that's very wide. The Re-Profiled compressor cover is machined to an optimized tolerance to ensure maximum compressor efficiency is given.
A key part to driving the larger BW2283 compressor and in turn making this unit produce the more power over stock, is machining and fitting a larger BorgWarner K04 turbine as fitted to the Audi S3 8P and others but also given a curved clip of the blades for more power. This K04 turbine offers lower back pressure with a higher flow so keeps EGT lower compared to stock K03 turbine or stock K04.
The clipping of the K04 turbine is a special TTE grinding process to the turbine blade tips, curved to alleviate stress from the process. Clipping reduces blade area thus increasing gas flow and so reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost level's. This process also gives a secondary advantage of removing some material, lightening the turbine thus reducing the rotational mass improving moment of inertia.
Genuine BorgWarner 360 deg high-performance motorsport journal bearing system is fitted. Durable at high loads with no loss in transient response.
The actuator used is uprated sprung OE unit, fitted with our reinforced clamps for trouble-free operation. This also can also be modified to customer needs and specifications.
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.
- Genuine BorgWarner K03 Housings, Exhaust manifold & Components
- Genuine BorgWarner 2283 K04 Compressor Geometry
- Optimized Compressor Cover and Turbine Housing CNC Machining Clearances
- Larger Genuine BorgWarner K04 Turbine, Special Curved Clipped for extra flow
- Genuine N75 valve
- Genuine diverter valve
- Uprated & Reinforced Actuator
- Reinforced Bearing System
- Fitment As Original. Plug & Play
- 350+ PS Capable
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Proven TheTurboEngineers quality
- Made in Germany
