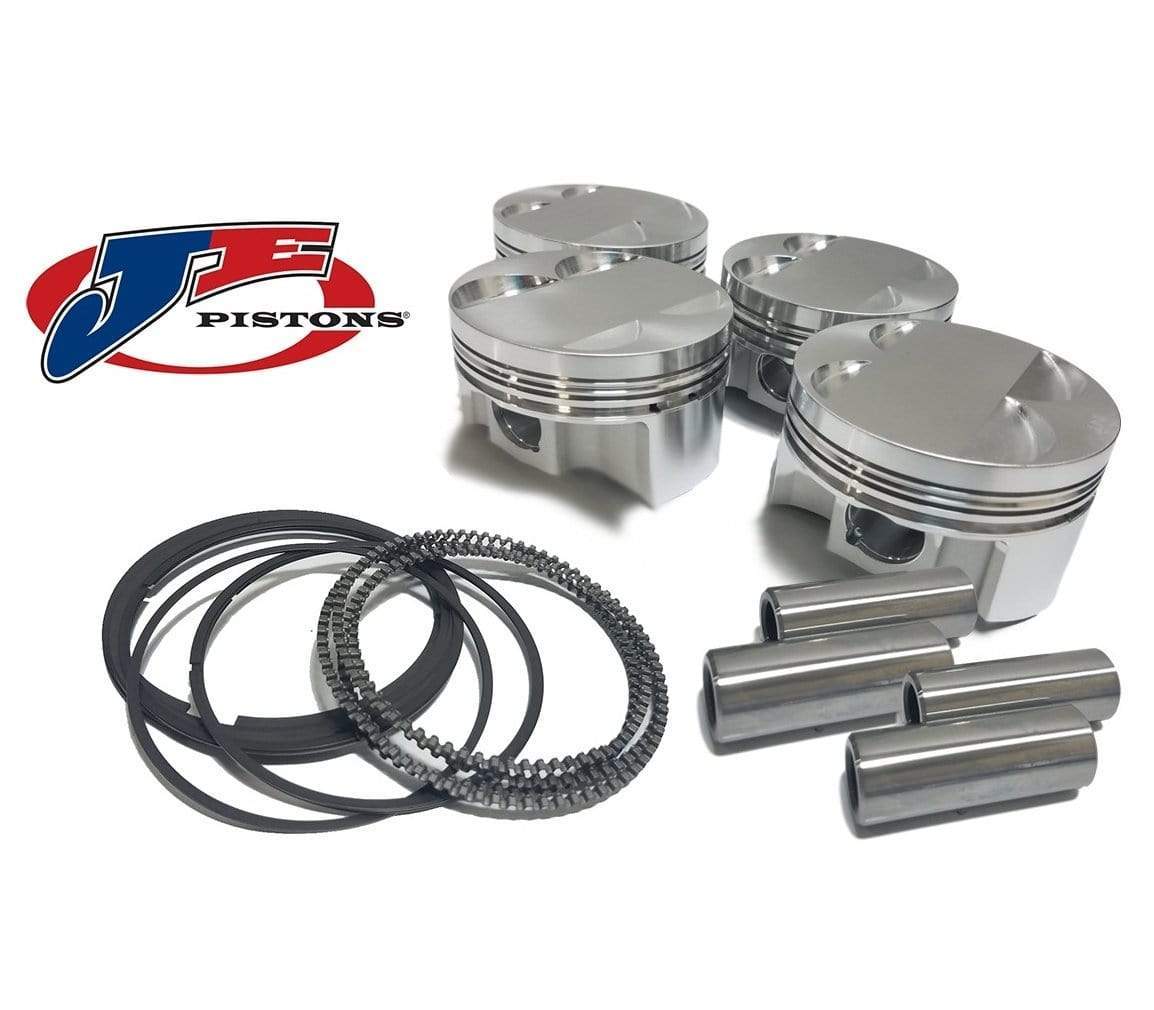

Piston Set by JE - 83MM Bore | Audi/VW | 2.0T TSI ULTRA SERIES | 367861

Bore (in)

3.268

Bore (mm)

83.

Top Compression Ring Thickness

0.0400

Second Compression Ring Thickness

0.0480

Oil Ring Thickness

0.111

Forging Type

FSR

Volume (cc)

-6.40

Series

JE Ultra Series

Piston Head Type

Inv Dome/Dish

Pin Diameter (IN)

0.827

Compression Height

1.155

Make

AUDI / VOLKSWAGEN

Wrist Pin Style - floating or press fit

Floating

Wall Type

CHAMFERED

Wall Thickness (IN)

0.210

Ringset Part Number

JG1004-3268

Ring Brand

ProSeal

Ringset Included

No

Retainer Thickness

0.063

Retainer Lock Style

Wire Lock

Retainer Lock Part Number

827-063-MW

Retainer Diameter (IN)

0.827

Replacement Single Piston

367861S

Piston Pin Inside Diameter

0.407

Piston Pin Material

9310 NICKEL CARBON STEEL ALLOY

Piston Material

2618

Piston Pin Length (IN)

2.250

Piston Avg Wt

299

Pin Offset

No

Pin Brand

JE Pistons

Pin Part Number

827-2250-21-93C

Pin Included

Yes

Pin Diameter (mm)

21.00

Oil Rail Support Included

No

Deck Clearance

-0.010

Brand

JE Pistons
