Piston Set by JE - 86.5mm Standard Bore | 11.5:1 CR | Stock Stroke - 89.6mm - S52 BMW | 297172

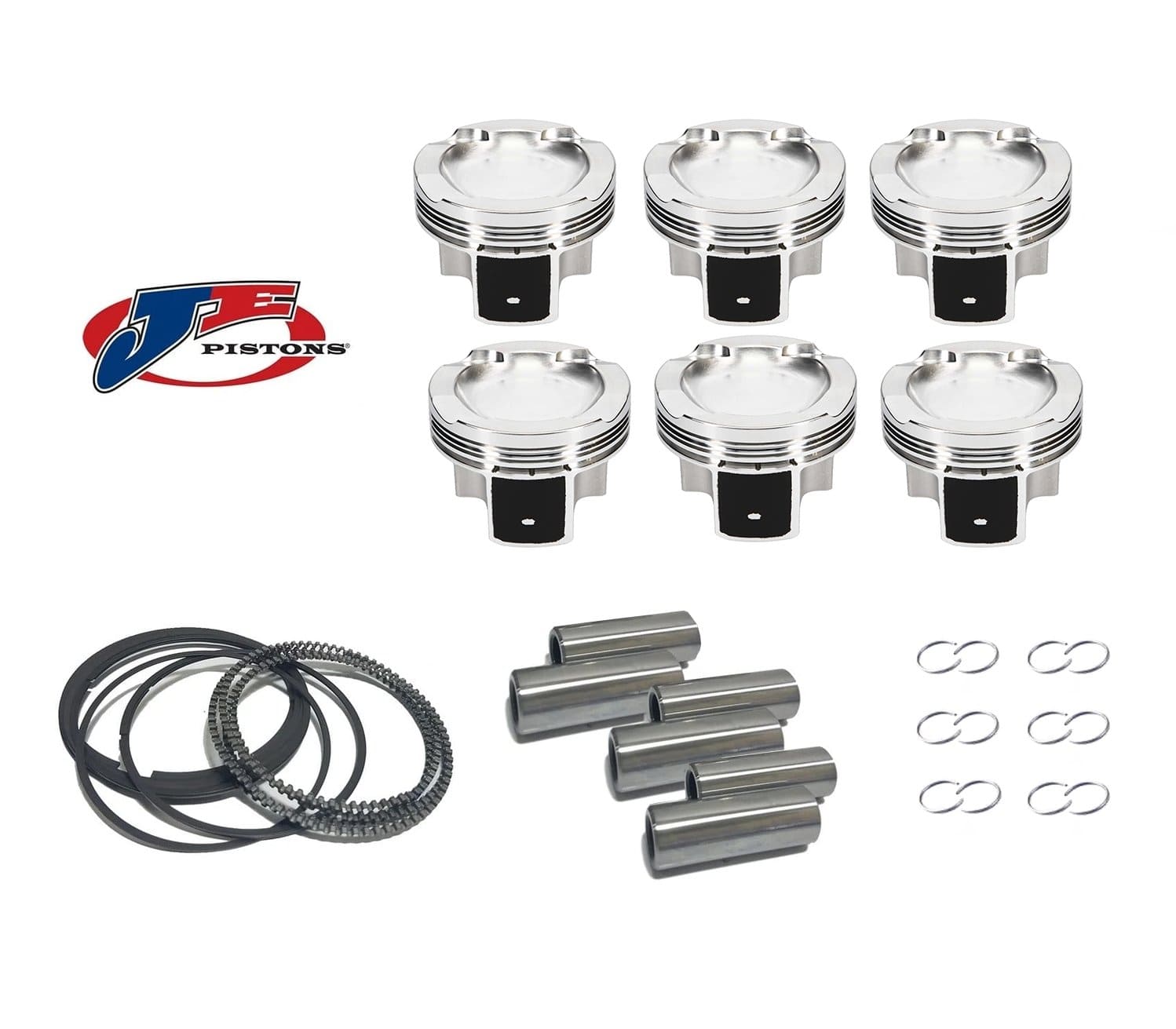

NOTE: Image shown not actual parts.


JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.


Bore (in) 3.406
Bore (mm) 86.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -9.40
Series JE Pistons
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.866
Compression Height 1.220
Make BMW
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.150
Ringset Part Number JG1001-3405
Ring Brand ProSeal
Ringset Included Yes
Retainer Thickness 0.063
Retainer Lock Style Wire Lock
Retainer Lock Part Number 866-063-MW
Retainer Diameter (IN) 0.866
Replacement Single Piston 297172S
Replaced By 288990
Piston Pin Inside Diameter 0.566
Piston Pin Material 5115 LOW CARBON STEEL, CASE HARDENED
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 291
Pin Offset Yes
Pin Brand JE Pistons
Pin Part Number 866-2250-15-51C
Pin Included Yes
Pin Diameter (mm) 22.00
Oil Rail Support Included No
Deck Clearance 0.030
Brand JE Pistons


OE Part #: 11-25-1-405-702 / 11 25 1 405 702 / 11251405702
