Ringer Racing Clutch and Flywheel Kit - VW Mk7 / Mk7.5 Golf R (NLA) | RR450-HD0Z-SF
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
)
Select Your Car to Verify Fitment
NOTE: Does NOT work on the MK7/7.5 2.0T FWD cars

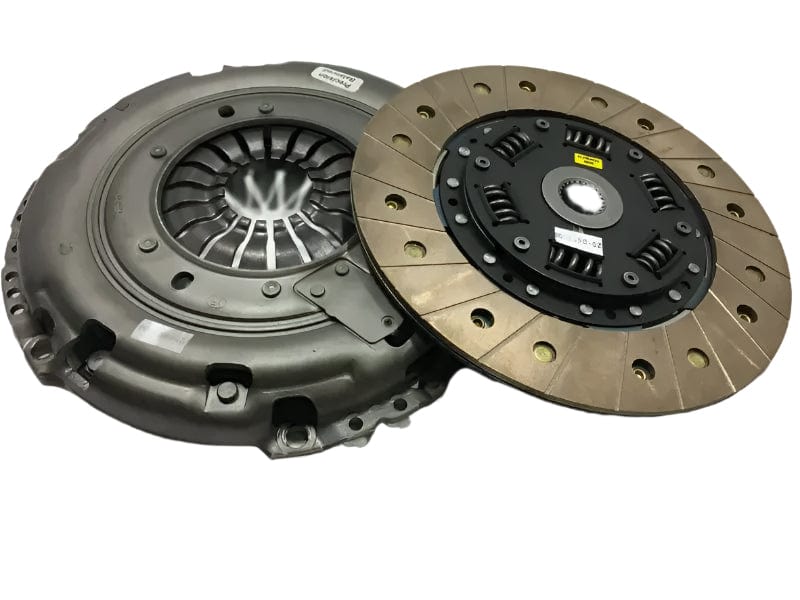

Kit includes:
- Ringer Racing Clutch Kit
- CM Billet Steel Flywheel
- Alignment tool
- Flywheel/PP Bolts
Kit does NOT include a throw-out bearing.
*Optional Hydraulics:
- CM Bleeder Block for use with stock line
- CM Bleeder Block kit with SS clutch line (replaces stock line)
- CM Performance Throw-out bearing kit with clutch line (replaces stock line)
Stage 2
- Heavy-duty daily clutch
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Ductile Iron Casting
- Sprung hub/cushioned Steel backed disc
- Steel backed Organic Material
Stage 2+
- Heavy-duty dialy clutch
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Ductile Iron Casting
- Sprung hub/cushioned Steel backed disc
- Steel backed Organic Material
- Slightly stiffer pedal then Stage 2
Stage 3
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Ductile Iron Casting
- Sprung hub/cushioned Steel backed disc
- Steel backed Organic/Cerametalic Material
Stage 3+
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Ductile Iron Casting
- Sprung hub/cushioned Steel backed disc
- Steel backed Organic/Cerametalic Material
- Slightly stiffer pedal then Stage 3 and stage 4
- Note: Stage 3 disk with Stage 5 pressure plate
Stage 4
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned Steel backed disc
- Full Face Cerametalic Material on both sides
Stage 5
- Heavy-duty street & racing system
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned Steel backed disc
- Full Face Cerametalic Material on both sides
- Slightly stiffer pedal then Stage 3 and stage 4
Flywheel Options:
- 18lb Single Mass Steel Flywheel (can have gear rattle)
- 23lb Single Mass Steel Flywheel (requires ARP Flywheel bolt option)
Torque Rating at the Flywheel
- Stage 2 – 425 ft lbs
- Stage 2+ – 490 ft lbs
- Stage 3 – 575 ft lbs
- Stage 3+ – 635 ft lbs
- Stage 4 – 735 ft lbs
- Stage 5 – 810 ft lbs
Note: Bolt torque specs:
- Flywheel bolts = 45 ft lb, 65 lb and then finish at 85 ft lb
- Pressure plate bolts = 25 ft lbs
- Dab of loctite on all bolts
