SPA Performance T3 Twin Scroll Top Mount Flange Turbocharger Exhaust Manifold w/ 252/260 High Performance Camshaft Set - VW/Audi 1.8L 20v | CMBEVW11A06032

• SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.

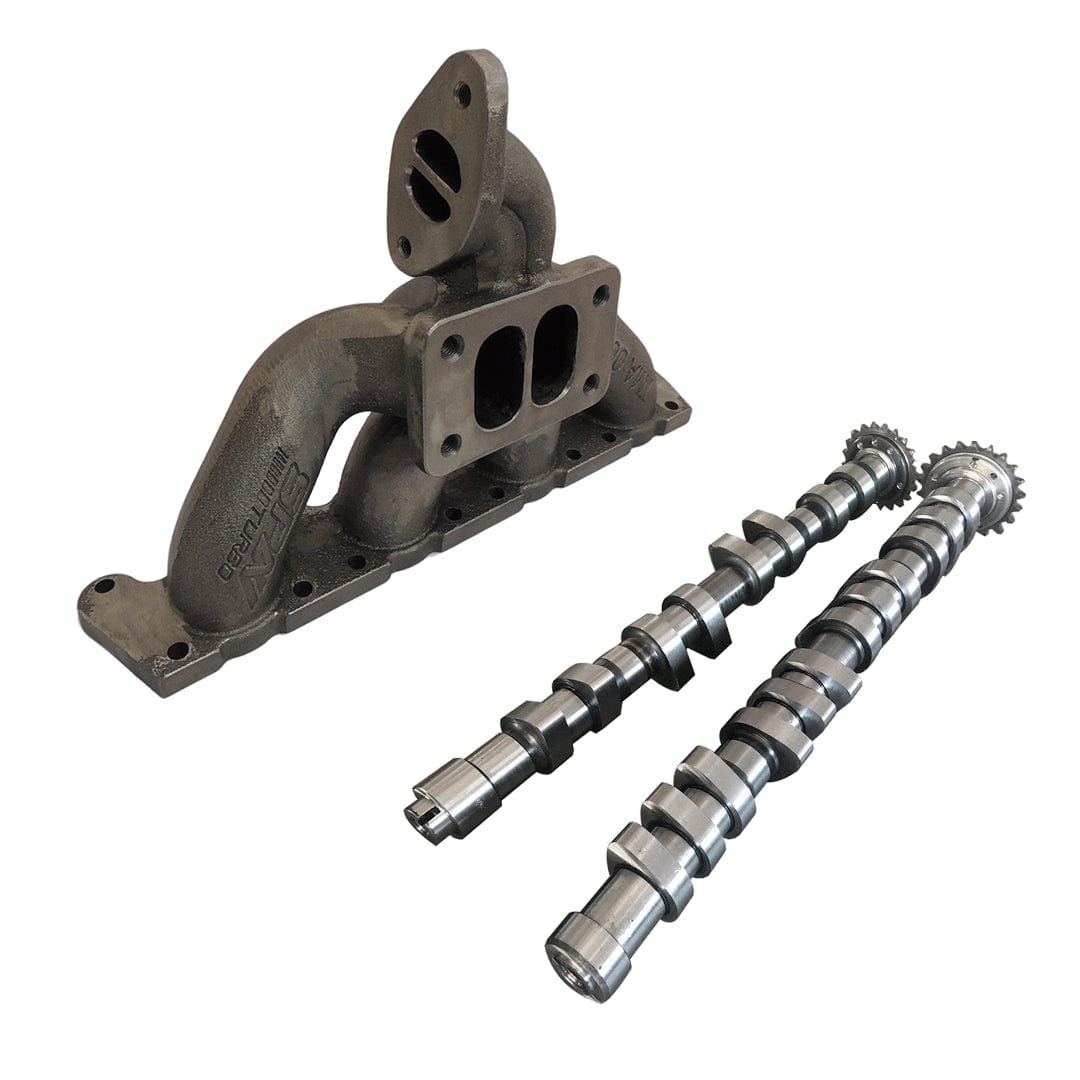

• The TMA06 manifold is a GGG40 cast manifold, with a T3 turbocharger Flange; manifold accepts 2-bolt 38mm wastegates.
• Internal diameter ducts: 42mm.
• The application is VW / Audi 1.8 20V transverse engines. (Golf, TT, A3)

• Below is a dyno comparsion of a single scroll and twin scroll manifold.

SPA Turbo has one of the widest selections of turbo manifolds in the world, including hard to find applications. From log style to top mount equal runners manifolds, we stock them. We have been providing quality performance components since 1990.

252 / 260 HIGH PERFORMANCE CAMSHAFT SET FOR VW/AUDI 1.8L 20V

• These SPA Turbo Cams for your VW are one of the best overall performance upgrades you can do.
• Not a peaky or hard to live with pair, this matched camshaft set increases performance throughout the available rev range and is a popular application for the street performance or dual street track uses cars.
• Intake 252°/Exhaust 260°
• Includes Adjustable cam sprocket/s
• This is a popular combination, designed to run with OEM lifters followers and springs

• Fits VW 1.8T 20V applications
• More torque and Horsepower!
• Intake 252°, cam lift 8,2, valve lift at TDC 0,8 - for TURBO, for hydr. lifters
• Exhaust 260°, cam lift 10,4, valve lift at TDC 0,7, for hydr. lifters
• Attention: we strongly recommend the assembly with NEW hydraulic lifters, otherwise camshafts can be damaged.
• ( Mfg / Vehicle (model) / Year / Engine )

Audi A4 CVT 2001.5-up 1.8T

Audi A4 FWD 2001-up 1.8T
Audi A4 Quattro 1997-1999.5 1.8T
Audi A4 Quattro 2000 1.8T
Audi A4 Quattro 2001-up 1.8T
Audi TT 2000-2004 1.8T 180HP
Audi TT Quattro 2000-2004 1.8T 180HP
Audi TT Quattro 2000-2004 1.8T 225HP
Golf/GTI IV 2001-up 1.8T
Golf/GTI IV 2000 1.8T
Jetta IV 2000 1.8T
Jetta IV 2001-up 1.8T
New Beetle 2000 1.8T
New Beetle 2001-up 1.8T
Passat B5 1998-2000 1.8T
Passat B5 2001-up 1.8T
Passat B5.5 2001.5-up 1.8T

• Tech Tips:
• Professional installation is a must with this cam set
• Timing chain tensioner needs to be modified to allow free travel of the included Adjustable cam sprocket.
• ​Install it with a new set of lifters
