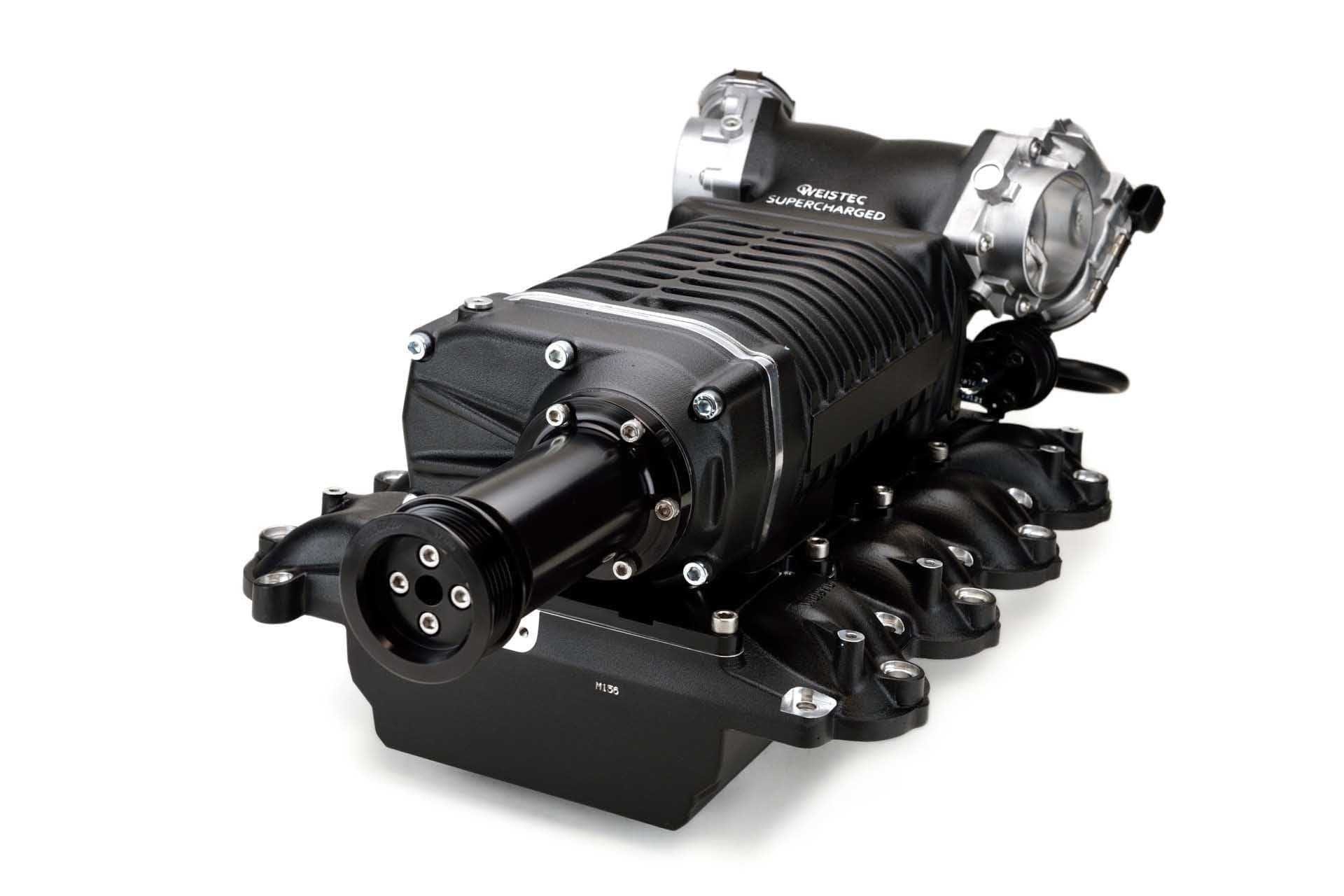

Weistec Stage 2 Mercedes M156 Supercharger System | 01-156-00337-6
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
COMPARE SUPERCHARGER STAGES
| Stage 1 | Stage 2 | Stage 3 | |
|---|---|---|---|
| Specifications |
- 2.3L Twin Screw Compressor |
- 2.3L Twin Screw Compressor |
- 3.0L Twin Screw Compressor |
| CARB Legal |
YES |
NO |
NO |
| Horsepower (WHP) | 637 | 672 | 740+ |
| Torque (ft-lb) | 560 | 662 | 630+ |
| Requirements |
- Stock Vehicle |
- High Flow Exhaust |
- High Flow Exhaust |
| Recommended Upgrades |
- Weistec Air Filters |
- Weistec Air Filters |
- Weistec Air Filters |
| Price USD** |
$11,999 |
$11,999 |
$15,599 |
**Price may vary by vehicle model.
Requires Aftermarket High Flow Exhaust
The Weistec Stage 2 Supercharger System is specifically designed for vehicles with high flow exhaust systems, and utilizes the ultra efficient Weistec direct drive belt system. Proper ECU remapping and supercharger drive ratios have been modified to work in conjunction.
KEY FEATURES:
-
2.3L Twin-Screw Compressor Module (Why Twin-Screw?)
-
1000hp Liquid to Air Intercooler Core
-
High Flow Cast Aluminum T6 Hardened Lower Manifold
-
High Flow Cast Aluminum T6 Hardened Throttle Body Inlet Y
-
45mm Boost Bypass Assembly
-
Billet Aluminum Direct Drive Cradle System
-
Supercharger Serpentine Drive Belt
-
Hard Anodized Billet Aluminum Serpentine Idlers
-
Johnson CM30 30 Liter/Min Intercooler Water Pump
-
Intercooler Water Recovery Tank
-
Cross Flow Heat Exchanger
-
High Flow Fuel Rail System
-
Molded Silicone Couplers
-
Power-Steering Reservoir Relocation Assembly
-
Weistec Engineering Stage 2 Supercharger System ECU Reflash
* Allow 6-8 weeks for orders to be shipped. Superchargers are made to order.
Note: This item is considered special order. (See Terms and Conditions)
