Scale Suspension Alpine Series Coilover - Lamborghini Diablo 1991-2002

The LB01-AS is offered in 2 different version depending the ride height range, comfort level and use each customer is looking for.

– OE Replacement version: This version is designed to keep a really close to OEM comfort level while still improving handling performance over stock. This version is not designed to go more than -0.5 inch from stock at minimum ride height setting. The OE replacement version is more used by people looking to replace a damaged or old factory suspension and keep the stock look and comfort level.

– Regular version: This version is the most used by customer looking to lower their Diablo. It allow a ride height adjustment from stock to approximately -2.5 inch. Comfort level is still really acceptable for daily use but certainly have to feel sportier to prevent any rubbing issue when lowered. The stiffer spring rate and valving give significantly improved handling performance over stock.

This application use a double wishbone suspension configuration for both front and rear. This means that the shock have no direct impact on the wheel alignment. Every cars alignment is affected the more you lower it and depending on the suspension geometry. The Diablo factory control arm have camber/caster adjustment eccentric bolt to set your wheel alignment to factory specs to prevent excessive tire wear after changing the ride height.

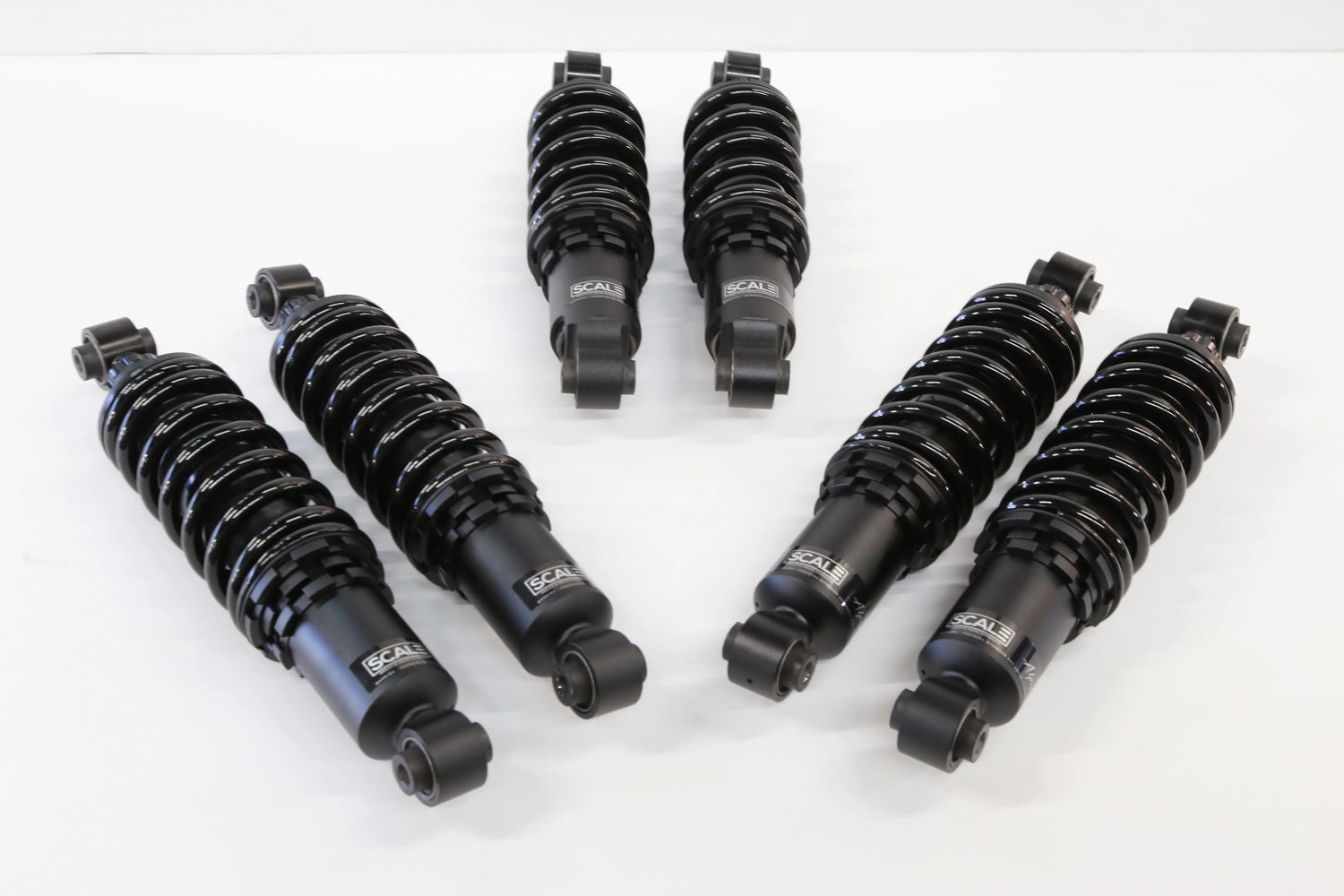

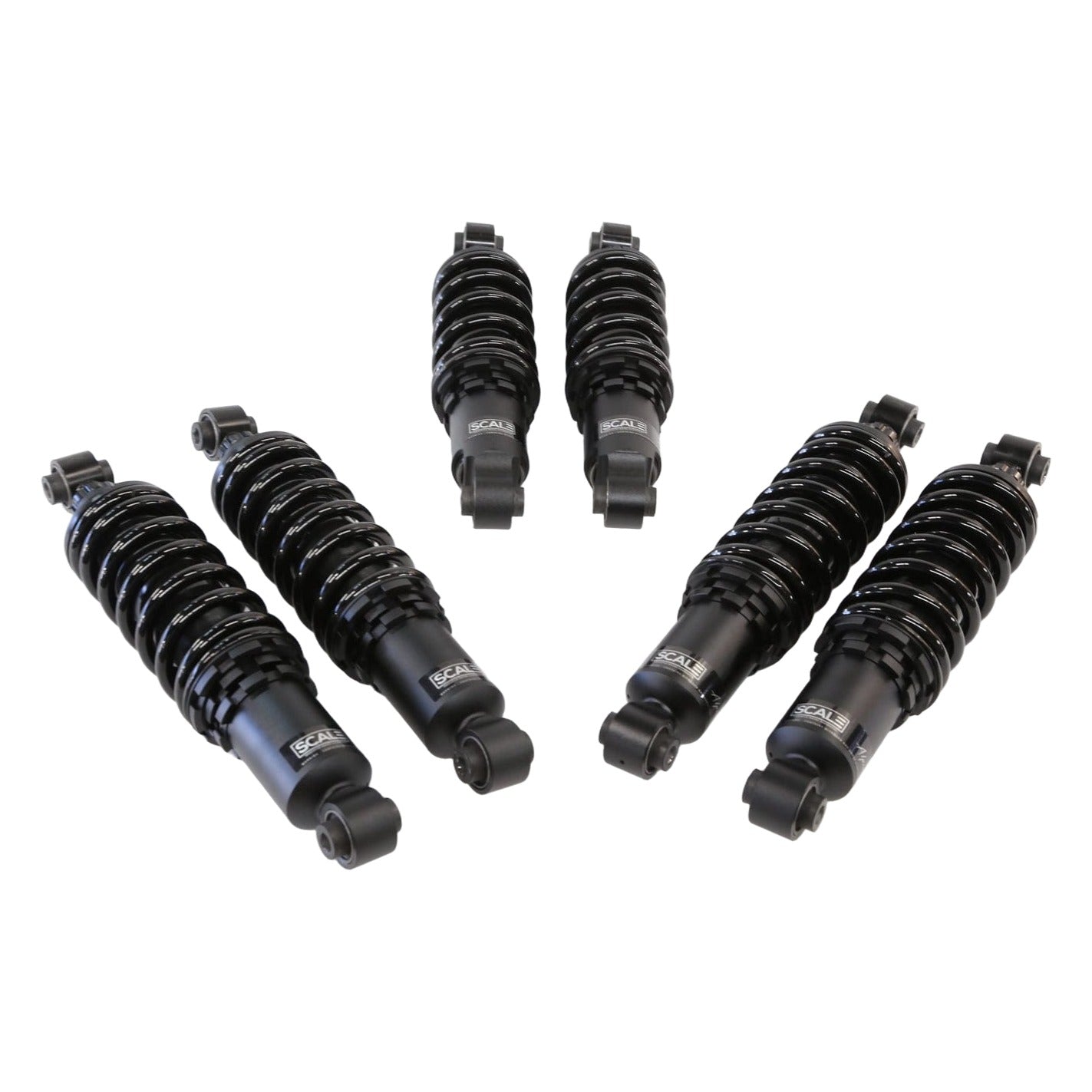

This model have 6 shock (2 for the front and 4 on the rear) so the swift spring upgrade price is based on a 6 spring upgrade.

If your Diablo is equipped with front lift system to go over obstacle and you want to keep this feature when upgrading to our coilover system, we do offer an air pressure activated system that will replace the factory hydraulic lifting system. Check our Hybrid series product line to learn more about this lifting system that can be added on your coilover suspension.
