CANchecked CBD06 CAN Bus Distribution | CC22106

The CANchecked CBD06 CAN Bus Distribution Hub provides a clean and organized solution for connecting multiple CAN bus devices within a vehicle. Designed for motorsport, performance, and custom automotive applications, the CBD06 simplifies wiring by creating a centralized connection point for CAN bus communication, power, and ground distribution while reducing installation complexity and wiring clutter.

Featuring six integrated ports, the CBD06 allows multiple CAN bus devices to be connected through a single compact hub. Each port carries CAN High, CAN Low, 12V power, and Ground, making it ideal for CANchecked displays, sensors, data loggers, aftermarket ECUs, and other CAN bus-enabled accessories. The compact housing can be mounted virtually anywhere, creating a professional-grade wiring infrastructure that simplifies future expansion and troubleshooting.

Internal jumper configurations allow installers to create either a single six-port CAN network or separate the unit into two independent three-port CAN buses. Integrated CAN termination options provide additional flexibility for a wide range of vehicle and motorsport applications. Whether you're building a dedicated track car, integrating multiple CANchecked components, or expanding an existing CAN bus network, the CBD06 delivers a reliable and scalable solution.

The CBD06 is engineered to provide secure, motorsport-grade connectivity while maintaining a compact footprint, making it an excellent choice for enthusiasts and professional builders seeking a clean and efficient CAN bus distribution system.

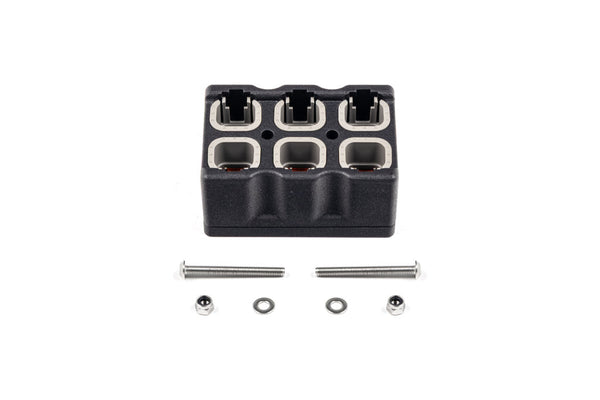

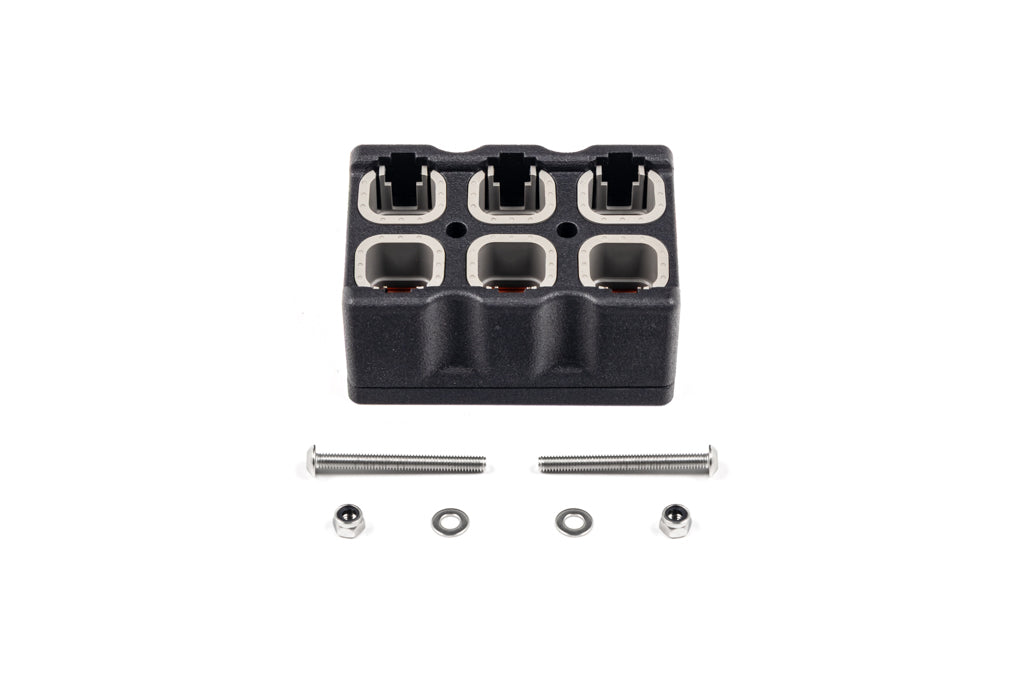

What's Included

• CANchecked CBD06 CAN Bus Distribution Hub
• Mounting hardware

Key Features

• Six integrated CAN bus connection ports
• Each port provides CAN High, CAN Low, 12V power, and Ground
• Compact housing for flexible installation
• Configurable single or dual CAN bus operation
• Selectable CAN bus termination resistors
• Compatible with CANchecked displays, sensors, data loggers, and aftermarket CAN bus devices
• DTM-style connector design for secure and reliable connections
• Ideal for motorsport, performance, and custom vehicle applications

Vehicle Applications

• Universal application
