CANchecked MFD15 Multi Function Universal Display | 1.5" Gen2 | CC01002

The CANchecked MFD15 Multi Function Universal Display - 1.5" Gen2 (LHD) is a compact 52mm OLED display designed for enthusiasts and tuners who need flexible access to critical engine and vehicle data. Whether you are monitoring boost, pressure, temperature, ethanol content, or ECU data over CAN Bus and OBD2, the MFD15 Gen2 provides a clean and highly configurable solution for street cars, race cars, and advanced performance builds.

Designed to fit into a standard 52mm gauge opening, the MFD15 Gen2 combines a high-contrast display with modern wireless functionality, allowing setup, configuration, logging, and updates through CANchecked’s online interface. Its shallow installation depth makes it easier to integrate into custom interiors, vents, pods, and vehicle-specific mounting solutions while still offering advanced motorsport-level data monitoring.

For customers running aftermarket ECUs or looking for a more versatile alternative to traditional analog gauges, the MFD15 Gen2 supports CAN Bus communication, OBD2 protocols, and additional external sensors through its analog inputs. This makes it an excellent choice for vehicles that require customizable display layouts, real-time warnings, and expandable data capability in a compact universal format.

Product Details

• 1.5-inch OLED multi-function display
• Standard 52mm gauge diameter
• 2 integrated buttons (left/right) on gauge face
• Approximate installation depth: 12.5mm
• Built-in Wi-Fi for setup, configuration, logging, and updates
• CAN Bus and OBD2 communication capability
• Supports up to 64 values depending on ECU compatibility
• Six analog inputs for additional sensors
• Preset alarms and warning functions
• Integrated warning LED / shift light functionality
• Multiple display layouts including multi-value, bar, and gauge-style views

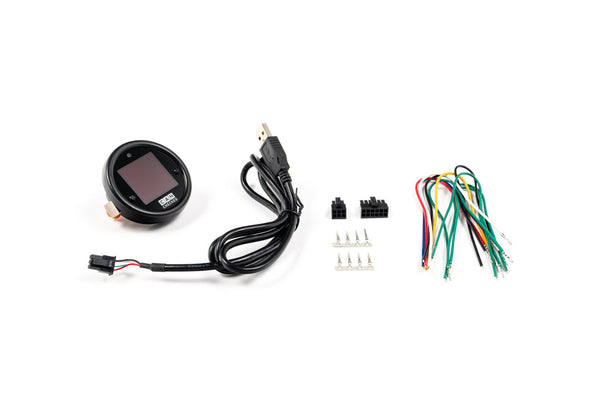

What’s Included

• CANchecked MFD15 Gen2 display
• 6-pin connector
• 12-pin connector
• Pre-crimped connection wires
• Pins for additional wiring
• Two 1K resistors for NTC sensor integration

Technical Overview

• Compatible with CAN Bus communication and OBD2-based data integration
• Supports a wide range of ECU data channels depending on vehicle and ECU compatibility
• Can monitor both ECU broadcast data and connected external sensors
• Designed for custom display layouts, warnings, and expandable data monitoring
• Online logging and some advanced functions may require additional licensing through CANchecked

Display Functions

• Configurable views including 6-value, 4-value, dual-value, bar graph, and round gauge layouts
• Performance meter and gear display functions
• Custom startup screen support
• Preset sensor alarms with customizable thresholds
• Integrated LED can be configured as a warning light or shift light

Vehicle Applications

• Universal application

Vehicle Compatibility & Data Availability

CANchecked products communicate directly with your vehicle via the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onwards. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.

Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, even within the same model range.

Please note that not all displayed values are intended for diagnostic or safety-critical purposes. While we strive to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.

Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
