CANchecked Toyota A90 MK5 GR Supra MFD32 Multi Function Display | 3.2" Gen2 (LHD) | CC37024

The CANchecked A90 MK5 GR Supra Multi Function Display – 3.2" Gen2 (LHD) is a fully integrated digital display solution designed specifically for the Toyota Supra MK5 platform. Developed for enthusiasts who demand complete access to engine and vehicle data, this system communicates directly with the factory ECU via CAN Bus, unlocking a comprehensive range of real-time performance metrics.

Built around the advanced MFD32 platform, this display features a high-resolution 3.2-inch TFT touchscreen with a symmetrical layout that allows for optimized placement within the Supra’s interior. The included vehicle-specific bezel ensures seamless OEM-level integration, giving the display a factory-installed appearance while maintaining full functionality.

Unlike universal solutions, the CANchecked Supra MK5 display is engineered with a model-specific CAN protocol that enables fast, direct communication with the vehicle’s control systems. This allows access to a wide range of data channels including temperatures, pressures, fueling parameters, driver inputs, and more—all without requiring additional modules or complex wiring.

The system supports up to 128 sensor values and offers up to 10 fully configurable display pages using CANchecked’s DSS (Display Setup Software). Pre-configured layouts are included for quick setup, while advanced users can customize views, logging, and alerts to suit street, track, or performance applications.

With plug-and-play installation, integrated analog inputs, and support for ethanol sensors and additional data channels, the CANchecked Supra MK5 display provides a powerful and flexible solution for monitoring and optimizing vehicle performance.

Product Details

• 3.2-inch TFT touchscreen multi-function display (MFD32 platform)
• Vehicle-specific design for Toyota Supra MK5 (A90 / A91)
• Includes OEM-style integrated bezel for seamless interior fitment
• Direct CAN Bus communication with factory ECU
• Supports up to 128 sensor values
• Up to 10 configurable display pages
• Pre-configured display layouts for quick setup
• 4 analog inputs for additional sensors (EGT, oil pressure, etc.)
• Direct ethanol sensor compatibility
• Built-in Wi-Fi for configuration, logging, and updates
• Compatible with DSS Display Setup Software
• Plug-and-play installation with included wiring harness

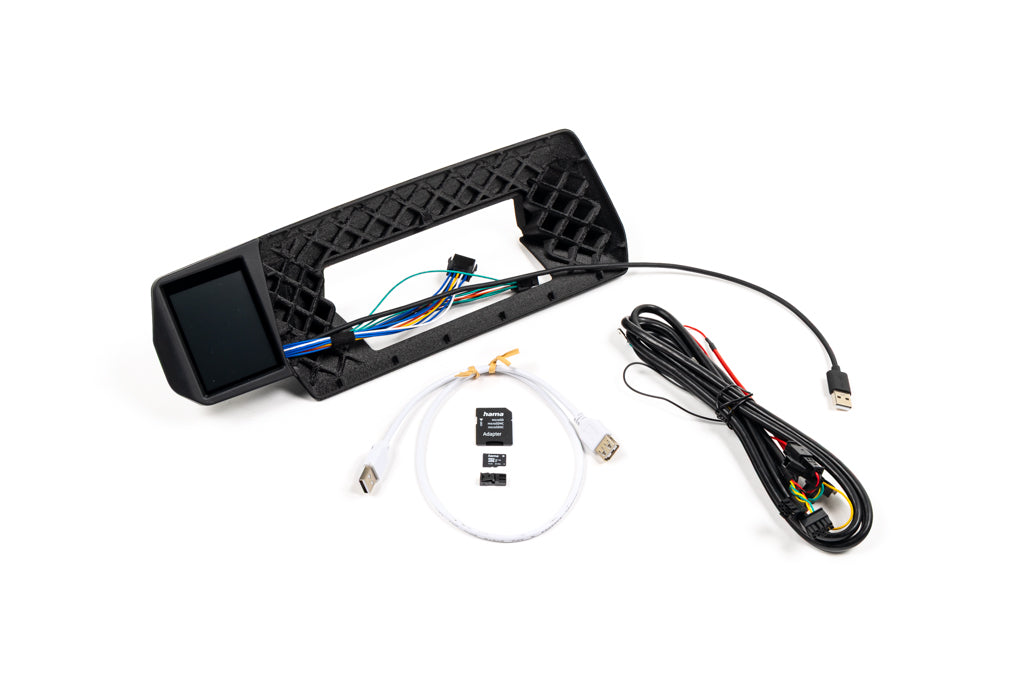

What’s Included

• CANchecked MFD32 3.2" display unit
• Vehicle-specific Supra MK5 bezel
• Plug-and-play wiring harness
• Pre-configured TRI file for sensor data
• Mounting hardware
• Optional anti-reflective film

Technical Overview

• Direct CAN Bus integration using manufacturer-specific protocols
• Optimized data query speed for real-time monitoring
• Supports ECU broadcast data and additional analog sensor inputs
• Configurable using DSS (Display Setup Software)
• Expandable system with CAN switching capability
• Optional features such as logging and advanced configurations may require additional licensing

Display Functions

• Fully configurable display layouts with up to 64 widgets per page
• Up to 10 display pages for multiple data views
• Real-time monitoring of temperatures, pressures, fueling, and performance data
• Performance metrics including power, torque, and acceleration data
• Driver input monitoring including throttle position, steering angle, and braking pressure
• Gear display, RPM, ignition timing, and battery voltage
• Customizable warning thresholds and alerts
• Optional external shift light support

Vehicle Applications

• Toyota A90 / A91 GR Supra MK5 - Left Hand Drive
• Compatible with B58 (6-cylinder) and B48 (4-cylinder) engines

Vehicle Compatibility & Data Availability

CANchecked products communicate directly with your vehicle via the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onwards. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.

Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, even within the same model range.

Please note that not all displayed values are intended for diagnostic or safety-critical purposes. While we strive to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.

Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
