CANchecked VW MK7 Golf MFD32 Multi Function Display | 3.2" Gen2 (LHD) | CC32035

The CANchecked MFD32 Gen2 Multi Function Display transforms the interior of the Volkswagen MK7 Golf by providing OEM-style access to advanced vehicle data, diagnostics, and performance monitoring. Designed specifically for left-hand-drive vehicles, the MFD32 integrates directly into the factory air vent, creating a clean installation that maintains interior aesthetics while delivering real-time access to critical engine and vehicle information.

Using direct CAN bus communication, the MFD32 provides access to a comprehensive range of vehicle parameters including boost pressure, oil temperature, coolant temperature, intake air temperature, fuel pressure, ethanol content, ignition timing, gear position, vehicle speed, and much more. The high-resolution touchscreen display allows drivers to easily navigate between multiple customizable display pages while monitoring live data, performance metrics, and diagnostic information.

Far more than a traditional gauge display, the MFD32 serves as a complete vehicle monitoring platform. Users can create custom layouts, configure warning thresholds, log vehicle data to the integrated SD card, monitor additional analog sensors, and measure acceleration performance through the integrated performance meter. The system also supports external CANchecked accessories and sensors, allowing the display to expand alongside future modifications.

CANchecked's powerful Display Setup Software (DSS) provides extensive customization capabilities, enabling users to modify display layouts, configure sensors, review logged data, and personalize the interface to suit their specific vehicle and driving requirements. Whether installed on a daily-driven street car or a dedicated performance build, the MFD32 delivers advanced functionality in a factory-inspired package.

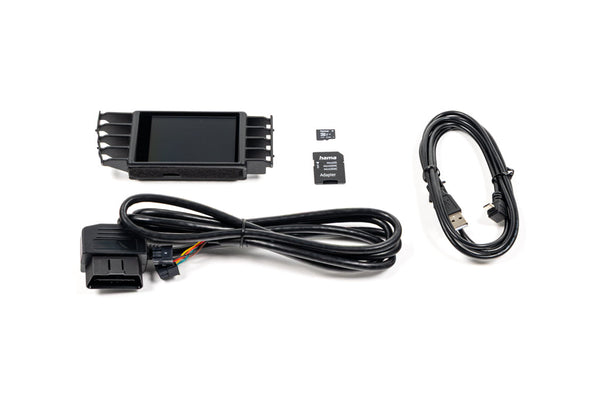

What's Included

• CANchecked MFD32 Gen2 Multi Function Display integrated into vehicle-specific air vent assembly
• Vehicle-specific connection harness
• USB data cable
• Pre-installed SD card
• SD card adapter
• Anti-reflective display film
• Quick Start Guide

Vehicle Applications

• Volkswagen Golf (MK7) 2012-2019 - Left Hand Drive

Vehicle Compatibility & Data Availability

CANchecked products communicate directly with your vehicle via the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onwards. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.

Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, even within the same model range.

Please note that not all displayed values are intended for diagnostic or safety-critical purposes. While we strive to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.

Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
