Front Sway Bar Installation Kit - VW/Audi 1.8T / 12 & 24v VR6 / Mk4 Golf & Jetta / New Beetle by UroTuning Kits 1J0411314T-KT

Front Sway Bar Installation Kit - VW/Audi 1.8T / 12 & 24v VR6 / Mk4 Golf & Jetta / New Beetle | 1J0411314T-KT

Name: Front Sway Bar Installation Kit - VW/Audi 1.8T / 12 & 24v VR6 / Mk4 Golf & Jetta / New Beetle
Brand: UroTuning Kits
SKU: 1J0411314T-KT
Price: 97.98 USD
Availability: InStock

Read Product Details

ON SALE $224.68

$97.98

Part# 1J0411314T-KT

Photo is for representational purposes only. Actual product may vary slightly.

In Stock

Ships in 0-2 Days

QTY:

Earn Rewards! +489 Points

Select Your Car to Verify Fitment

Worn Sway Bar Bushings can cause bad steering characteristics that will wreck havoc on your cornering. This Kit includes all the parts you need to professional install a new sway bar or just freshening up your bushings before they get too bad.

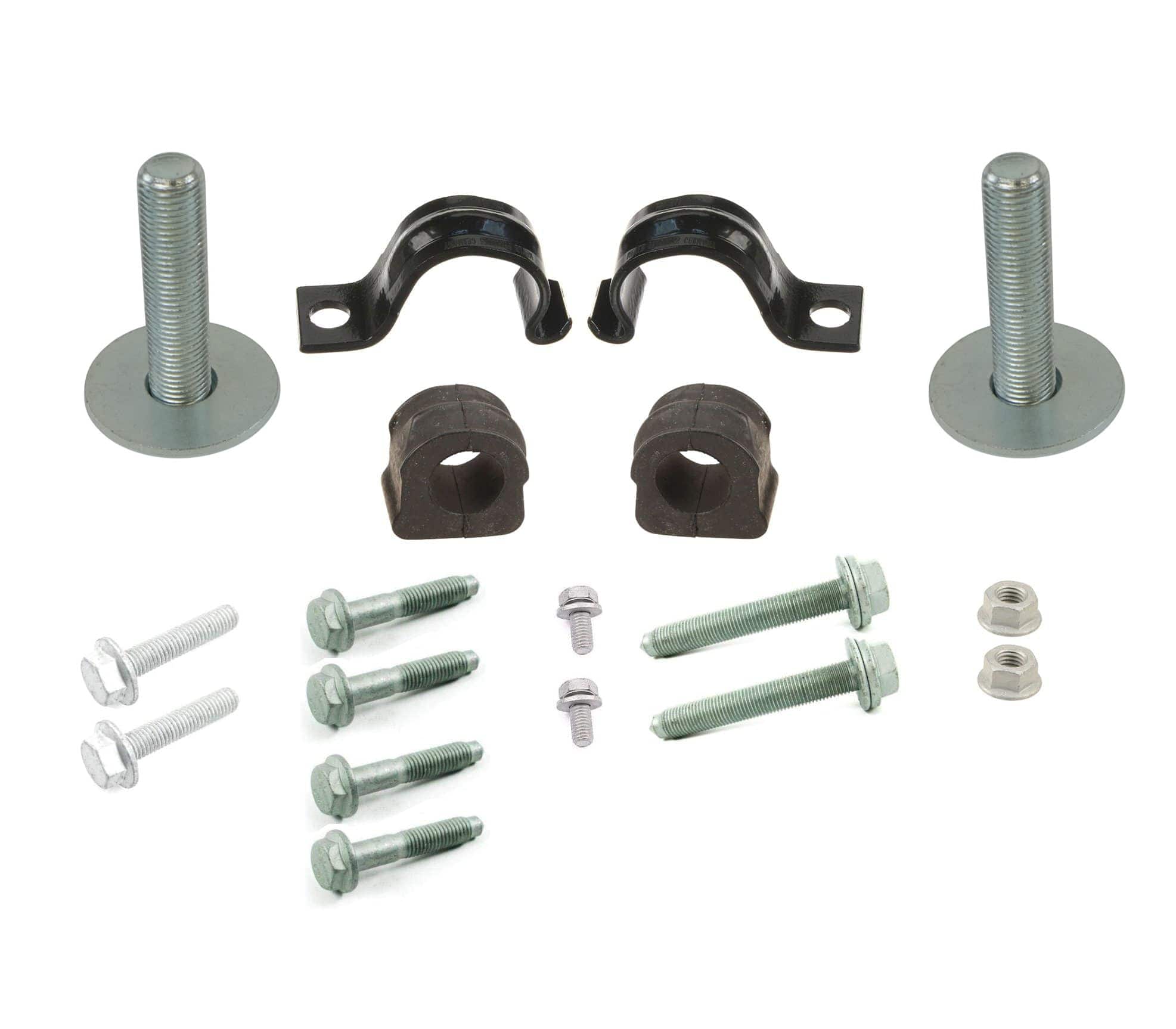

Kit Includes:

- (2) Hex Bolt M14x1.5x95 (VW/Audi)
- (2) Hex Nut M10 (VW/Audi)
- (2) Hex Bolt M14x1.5x60 (Aftermarket) ⚠️
- (2) Zinc-Plated Steel Washers M14x15IDx44OD (Aftermarket)
- (2) Hex Bolt M10x50 (VW/Audi)
- (2) Sway Bar Clamp (Meyle)
- (4) Shouldered Hex Bolt M10x55x32 (VW/Audi)
- (2) Sway Bar Bracket Bolt M8x18 (VW/Audi)
-(2) Sway Bar Bushing (Meyle)

⚠️ Disclaimer: ONLY for the (2) M14x1.5x60 Bolts contained in this Kit.
The original factory torque-to-yield (TTY) bolts for this application are no longer available (NLA). These are same-grade non-TTY replacements that meet or exceed OE strength.

When installing, do not follow the factory torque-plus-angle specification. Instead, use the standard torque values below and apply medium-strength blue threadlocker to clean threads for added safety if you want.

Bolt Size	Thread Pitch	Grade 8.8	Grade 10.9	Grade 12.9
M6	1.0	7 ft-lb	9 ft-lb	10 ft-lb
M8	1.25	16 ft-lb	22 ft-lb	26 ft-lb
M10	1.5	32 ft-lb	44 ft-lb	52 ft-lb
M12	1.75	57 ft-lb	74 ft-lb	89 ft-lb
M14	2.0	92 ft-lb	118 ft-lb	140 ft-lb
M16	2.0	144 ft-lb	181 ft-lb	218 ft-lb

*Values are for clean, dry threads — reduce by 10–20% if lubricated.*

Part #'s

Hex Bolt M14x1.5x95

N90-734-902 / N90 734 902 / N90734902

Hex Nut M10

N10-261-310 / N10 261 310 / N10261310

N10-261-302 / N10 261 302 / N10261302

N01-510-02 / N01 510 02 / N0151002

Hex Bolt With Washer M14x1.5x63

N90-752-802 / N90 752 802 / N90752802

N90-752-801 / N90 752 801 / N90752801

Hex Bolt M10x50

N10-699-401 / N10 699 401

N10-417-601 / N10 417 601 / N10417601

Sway Bar Clamp

1J0-411-336-D / 1J0411336 D / 1J0 411 336 D / 1J0411336D

1J0-411-336-C / 1J0411336 C / 1J0 411 336 C / 1J0411336C

Shouldered Hex Bolt M10x55x32

N90-596-906 / N90 596 906 / N90596906

N90-596-901 / N90 596 901 / N90596901

N90-596-902 / N90 596 902 / N90596902

Sway Bar Bushing

1J0-411-314-T / 1J0411314 T / 1J0 411 314 T / 1J0411314T

⚠️CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
