Head Gasket Cylinders 1-3 - Audi 3.0L V6 TDi / A6, A7, A8 Quattro / Q5 / Q7 / Touareg | 059103383JN

This gasket comes in 3 different thicknesses. Make sure that you order the correct one for you're vehicle before ordering. The number of holes on the front center of the gasket tell you the thickness. If your just changing the head gasket look and see what gasket thickness is on the engine now. If you have changed pistons, rod bearings, main bearings, or had the block decked you need to measure your piston protrusion to see what size you will need.

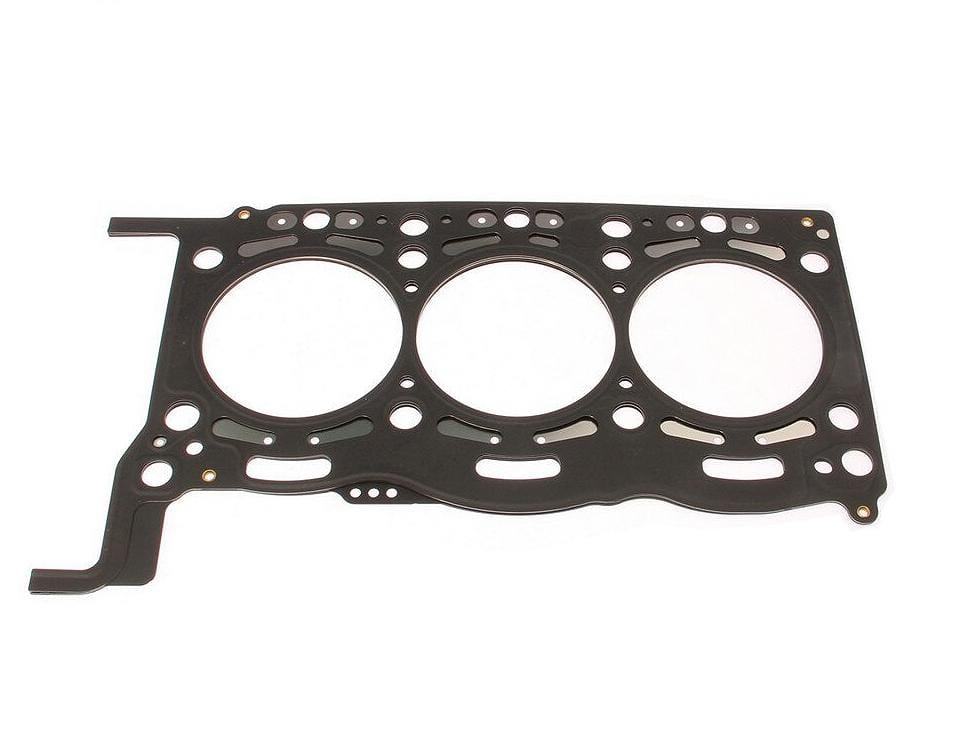

Be sure to check your old head gasket for the number of holes punched in it. That designates the thickness of the gasket. Pictured above is a 1.68mm 3 hole. When rebuilding an engine it is important to measure the piston protrusion. Your piston protrusion measurements will dictate what thickness you need.


The GENUINE part, in the car manufacturer's box, as sold by the new car dealer.



Part #'s


1 Hole Gasket

059-103-383-JL / 059103383 JL / 059 103 383 JL / 059103383JL


2 Hole Gasket

059-103-383-JM / 059103383 JM / 059 103 383 JM / 059103383JM


3 Hole Gasket

059-103-383-JN / 059103383 JN / 059 103 383 JN / 059103383JN
