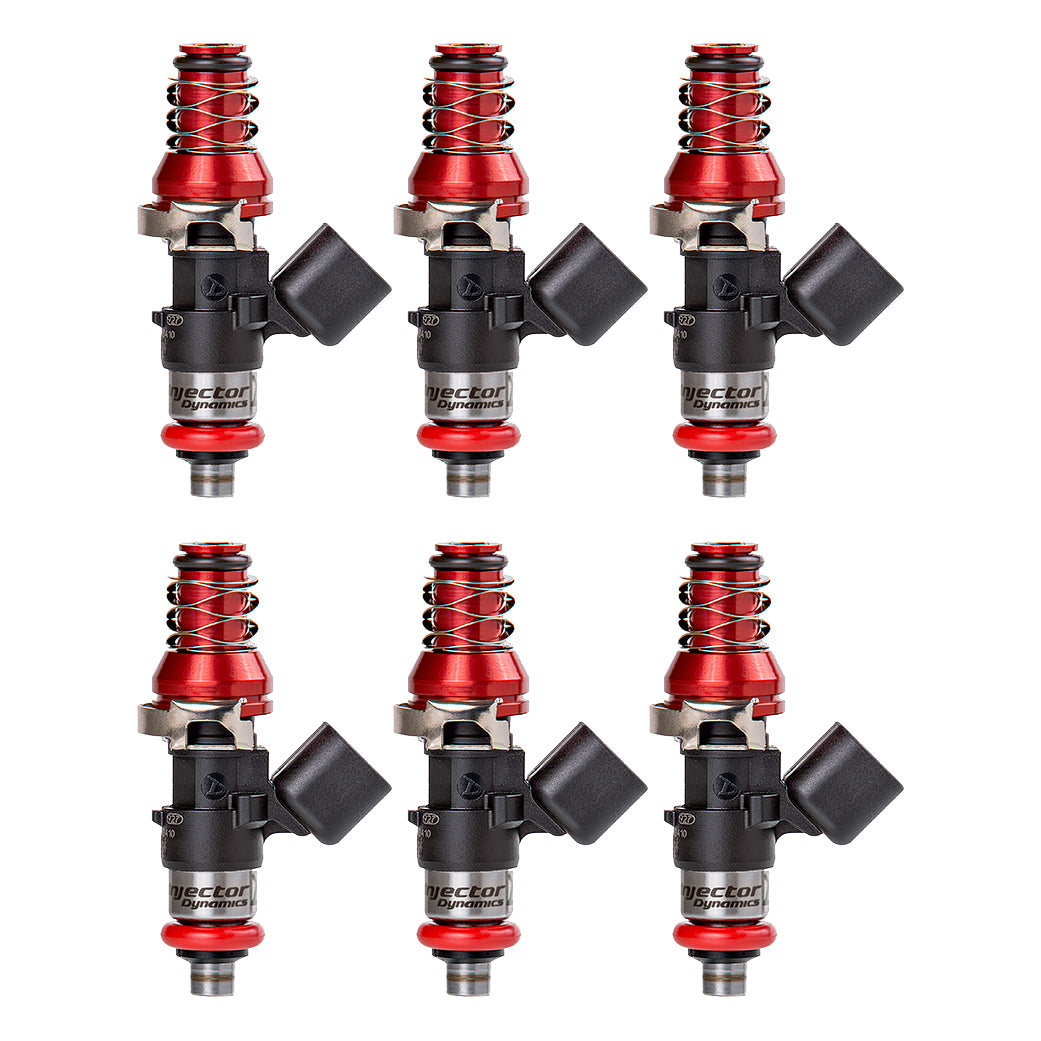

Injector Dynamics 1340cc Injector 34mm Length No Adaptor Top 14mm Up O-Ring / 14mm Low O-Ring (Set of 6) | IDX1300.34.14.14.6

Read Product Details


$1,545.39

Free Shipping

Part# IDX1300.34.14.14.6


Photo is for representational purposes only. Actual product may vary slightly.

In Stock In Stock
Item is IN STOCK, order now and will ship out within 1 business day!
Dropship Direct Ship
This product will ship direct from our supplier. Availability is subject to suppliers stock.

Earn Rewards! +7726 Points
Support Icon


The ID1300x² is an all new injector, designed in partnership with Bosch Motorsport. This collaboration has given us the ability to design a high flow injector with characteristics specific to the needs of the motorsport tuner. The ID1300x² was designed with alternative fuels in mind, and was originally the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market. While the ID1300x² was designed with an eye towards ethanol fueled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300x² has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behavior under these conditions. In addition to its multi-fuel capabilities, the compact body of the ID1300x² allows fitment in 200+ applications, making it the most versatile injector in our lineup.

Basic Specifications

  • Nominal Flow Rate – 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
  • Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
  • Fuel Compatibility – Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
  • Electrical Connector – USCAR

ID1300-XDS Dynamic Flow Data

Fuel Pressure
(psid)
Offset
(µsec)
Slope
(cc/min)
8 Volts 10 Volts 12 Volts 14 Volts 16 Volts
40.0 2146 1524 1182 956 803 1296
43.5 2210 1557 1203 970 813 1357
45 2239 1571 1212 976 817 1381
50 2342 1619 1242 996 830 1461
55 2453 1669 1274 1019 843 1536
60 2573 1724 1308 1044 860 1609
65 2699 1785 1345 1072 881 1679
70 2835 1849 1383 1101 904 1745
75 2985 1914 1422 1129 925 1805
80 3149 1981 1459 1154 945 1860
85 N/A 2051 1498 1179 965 1911
90 N/A 2128 1540 1206 985 1957
95 N/A 2209 1584 1234 1005 1999
100 N/A 2295 1629 1262 1025 2037

Plug n’ Play Data

Are you tired of pouring over logs, making corresponding changes to your tune, only to find that what worked one day is off by the next? Have you wasted hours sifting through a myriad of injector related forum posts, only to find that there is no simple solution? Such is the nature of tuning with inaccurate injector data.

Accurate injector characterizations are the basis of all fueling calculations, so it’s no wonder that if you’re tuning without them, you will spend a lot of valuable time making the best of a bad situation. It will keep you busy searching for endless combinations of mostly incorrect answers, and it will rob you of the most basic functions provided by the guys who spent millions of R&D dollars designing the engine management system for your car.

Whether you are a professional tuner, or an end user, you can spend countless hours getting it “mostly correct” or you can copy and paste accurate characterization tables and get on with the job of maximizing performance and drivability.

Injector Dynamics is the only motorsport injector supplier capable of generating these OEM quality injector characterizations, and our engineering services are available to generate data for new platforms and applications at no cost to our customers.

We welcome the opportunity to provide solutions where none previously existed, and it is this commitment to value and innovation that has earned us our position as the industry leader.

Remember that next time you hear “The Same as Injector Dynamics but Cheaper”
