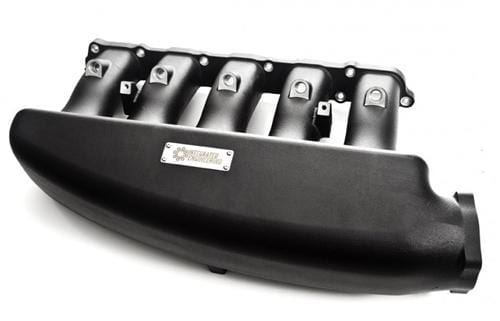

Integrated Engineering 2.5L 5 Cylinder Intake Manifold | IEIMVB1-BK


$899.99

Free Shipping
Integrated Engineering

Part# IEIMVB1-BK

In Stock In Stock
Item is IN STOCK, order now and will ship out within 1 business day!
In Stock at Supplier In Stock at Supplier
Item is IN STOCK at supplier, item will ship to you direct from our supplier within 0-2 business days.

Earn Rewards! +4499 Points


UPGRADE YOUR MANIFOLD TO UNLOCK FULL POWER

Unlock your 5 cylinder engine's full power potential! The industry-leading IE 2.5L Intake Manifold provides power gains of over 47HP when coupled with IE Stage 2 manifold software.

LEADING FEATURES

  • Performance design delivers a massive 47HP gain
  • Optimized bellmouth inlets create maximum power
  • Power and torque throughout the entire RPM range
  • Designed for use with NA and turbo applications
  • 100% engineered, tested, cast, and machined in the USA
  • High quality black powder-coat finish

TECHNICAL DETAILS

Bring your 2.5L 5 cylinder VW engine to life with the Integrated Engineering cast intake manifold. The factory 2.5L 5 cylinder intake manifold is designed to channel air into the engine sufficiently well to meet the original horsepower targets while being cost-effective and easy to install. This compromise means that there is room for significant improvement.

The IE performance manifold has been designed from the bottom up to put performance first. IE engineers exploit careful tuning of the intake manifold runner lengths and diameters to create a resonance effect that rams more air into the cylinders. The plenum and runner designs have been carefully optimized with computer software for maximum flow, allowing your engine to breathe easier and perform at its best.

EASY INSTALL WITH FACTORY-LIKE FITMENT

The Integrated Engineering 2.5L ultimate power kit has been carefully designed to fit 07K engines while retaining all of your factory components. Through extensive research and development, this intake manifold fits with no modifications to the engine bay, vacuum system, emissions systems, fuel system, or coolant system. With the plenum being larger than the factory, the throttle body placement is moved a small amount, which is easily plumbed to your mass airflow sensor using the included 2.5L manifold air intake kit.

INCREASED PLENUM VOLUME

This plenum on this manifold has been generously sized and shaped to distribute airflow as evenly as possible to all 5 cylinders. The increased internal volume is a massive improvement over the factory piece and ensures a steady supply of air for the engine.

FLOW TUNED RUNNER DESIGN

By using a cast aluminum construction manifold, our engineers are able to properly size and shape the manifold runners and velocity stacks for optimal performance. This runner flow and resonance tuning is a huge contributor to the overall performance of the intake manifold and is not possible to achieve on hand-welded manifolds generally available for this platform. Featuring aggressively sized runners that have been optimally tuned for large power increases throughout the mid-high RPM band. Our engineers employ CFD software to research and develop an optimized runner and bellmouth design, after many revisions to the design they have achieved the best runner shape, size, and velocity stack for the 2.5L application.

ENGINEERING PROCESS

Unlike other manifolds on the market that are simply welded and made to fit on the car, IE's performance intake manifolds receive special treatment from start to finish. Our engineering department looks at each specific application and designs an intake manifold with a properly sized runner and plenum. Then we begin a series of prototyping and testing countless revisions to the design to ensure optimum performance.

Our engineers use Computational Fluid Dynamics (CFD) software to optimize the runner and velocity stack (bellmouth) system for proper resonance tuning and airflow. Unlike competitor manifolds, we use this process on each manifold to design the application-specific runner system to maximize airflow delivery to the cylinders.

Once the manifold has been designed and flow has been optimized, the 3D models head over to our 3D printing studio to manufacture the initial prototype. The 3D printed manifold is fastened onto our in-house engine dynamometer and in-house chassis dynamometer for testing. To validate the plenum, runner, and bellmouth design, we test each revision in a controlled environment. Once all testing data has been collected, it is analyzed and used to determine if changes are necessary before going into production.

REQUIRES STAGE 2 SOFTWARE

Simply installing the manifold itself does not unlock your power potential, you will also need to update the ECU tune to recalibrate it for the increased volume and flow of the new manifold. The IE Stage 2 performance flash for VW 2.5L engines is designed specifically to re-calibrate the naturally aspirated 2.5L engine for use with the IE intake manifold. That is to not only provide more horsepower and torque, but make the driving experience more enjoyable by removing rev hang, increasing throttle response, and increasing the rev limiter. With such a significant power increase, it makes the vehicle much more enjoyable to drive, with plenty of power available until redline. Tune sold separately

FITMENT RESTRICTIONS

POWER STEERING

This manifold will fit all VW 2.5L engines with the electric power steering system. Some later style engines use a hydraulic power steering pump, which sits right below the factory intake manifold. If your car is equipped with a hydraulic power steering pump, this manifold will not fit.

AUTOMATIC TRANSMISSION TUNE REQUIRED

Automatic vehicles require a matching IE TCU Transmission tune to allow high revving of the automatic transmission. The stock automatic tune has internal transmission rev limit controllers that shift before the manifold and software can make the extra power gained through the upgrade. IE's Auto Transmission Tune removes this limiter allowing full advantage of the manifold & tune.

INSTALLATION

Installation requires removal of the factory intake manifold, fuel injectors, fuel rail, PCV system components, factory intake, and other factory parts. Although the install is straightforward, serious engine damage can occur from incorrect installation and professional installation is recommended. Click here to download the install guide.

ULTIMATE POWER KIT DYNO RESULTS
