IE Carbon Fiber Intake System - Audi / C7 / C7.5 / RS7 | IEINCX1


$999.99

Free Shipping
Integrated Engineering

Part# IEINCX1

In Stock
Item is IN STOCK, order now and will ship out within 1 business day!
Direct Ship
This product will ship direct from our supplier. Availability is subject to suppliers stock.

Earn Rewards! +4999 Points


DESIGN




  • High-gloss true carbon fiber construction
  • Integrated carbon velocity stack
  • 5.5" engine specific pleated cotton filter
  • Full carbon twin inlet pipe
  • Factory-style mounting
  • Stainless hardware
  • Powder-coated aluminum bottom plate
  • Multi-ply silicone with stop-flat edges
  • Stainless laser-etched logo plate

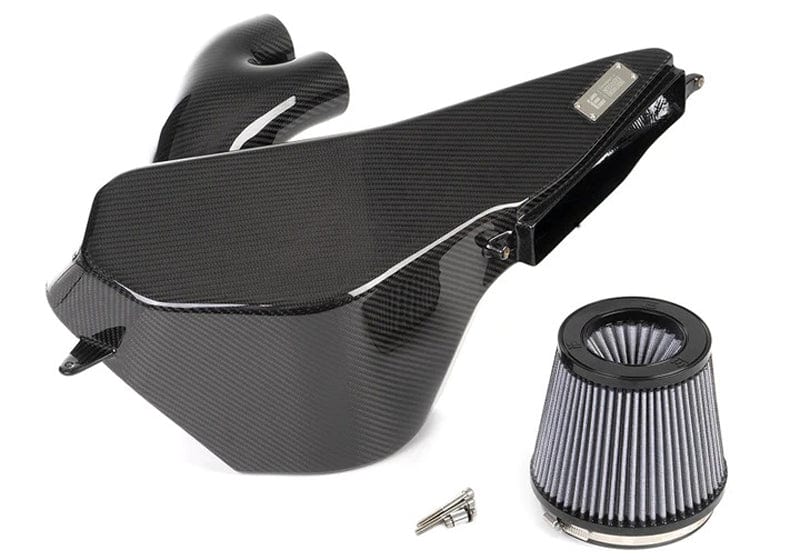

COMPLETE ASSEMBLY

The complete airbox assembly houses our 5.5" high-flow filter, aluminum bottom plate, carbon velocity stack/inlet pipe, stainless hardware, and mounting provisions for a complete bolt-in solution.

CARBON EXCELLENCE

Carbon fiber can be manipulated into almost limitless shapes allowing our engineers to utilize every millimeter of space within the tight factory engine bay. The unique architecture and contours allow for a larger internal volume and smoothed airflow while simultaneously shielding it from radiant engine bay heat.

HIGH-FLOW VELOCITY STACK

In order to gain the highest flow possible, the velocity stack transitions airflow from the large surface area of the air filter and smooths its travel to the inlet pipes. This clean reduction accelerates the airflow into very high inertia while reducing power-robbing drag and turbulence.

UNIQUE SOUND

Upgrading to IE's performance intake system will unleash a symphony of eight-cylinder engine and turbo sound that will make the throttle more addictive than ever. You own a twin turbocharged 4.0L V8 powerhouse -LET IT ROAR!

FLOW TESTING

Flow rate testing is performed to validate the design against the restrictive stock airbox. Using our in-house Superflow bench, the maximum possible flow rate in CFM (cubic feet per minute) is measured in gains over stock at a variety of test pressures (-in. H20). A higher flow reading means the intake system can support increased demands from ECU tunes and turbocharger upgrades.

Flow bench results show the massive flow improvements from our intake system.

IN/H20 STOCK CFM IE CFM INCREASE

-5

213

263

23.5%

-10

313

375

19.8%

-15

388

462

19.1%

-20

452

534

18.1%

-25

506

601

18.8%

-30

562

658

17.1%

MULTIPLE PRESSURE ZONES

The front inlet connects to the grill and receives a constant supply of ram air. Additionally, the aluminum bottom plate allows for an endless supply of low-pressure air pulled from beneath the intake. These two avenues ensure the air filter has a complete and unrestricted supply of low-temperature airflow for any power goal.

PRECISION FIT

To ensure a perfect fit, 3D scanning tools are used to create a digital duplicate of the vehicle's engine bay, grille, bumper, and hood. This provides an incredibly high-resolution environment to reverse engineer and prototype the intake design. This not only allows engineers to take advantage of all available space but also results in a perfect and extremely high-end install.
