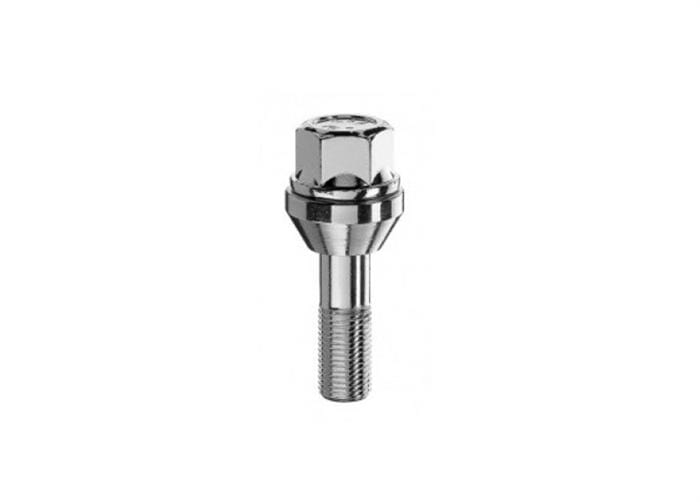

PCD Variation Wobble Bolt | 12x1.25x29
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
Don't limit yourself to your factory bolt pattern. Pick up these new Wobble Bolts and expand your wheel possibilities. These bolts feature a floating conical seat collar that allows movement up to 3mm of a wheel's PDC, which in turn, will allow you to run a 4x100 or 5x100 bolt pattern on your 4x98 / 5x98 pattern. On top of that, they are zinc coated to ensure long life.
How do Wobble Bolts work
Wobbly bolts have a 'floating' collar that seats on the wheel mating face. The collar is around 3mm oversized with respect to the shaft, giving it some freeplay.
This freeplay allows the bolt face to seat on the mating face correctly if oversize PCD wheels are put on. The typical oversizing is 3mm. Eg: It allows you to put 100mm PCD wheels on 98mm hubs.
As far as safety goes, don't let the wobble in the name fool you. Wobble bolts are completely safe assuming the wheel takes a standard 12x1.25x29mm conical bolt.
These bolts will fit most aftermarket wheels that use standard conical bolts.
Specs:
12mm diameter
1.25mm thread pitch
29mm length
Quality bolt made in ITALY
*Priced Each*
