Ultra Series 23mm Pin Piston Set By JE - 83.5mm +1.00mm Oversized Bore | 9.6:1 CR | Stock Stroke - 92.8mm - VW/Audi 2.0T TSI | 367865
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
Select Your Car to Verify Fitment

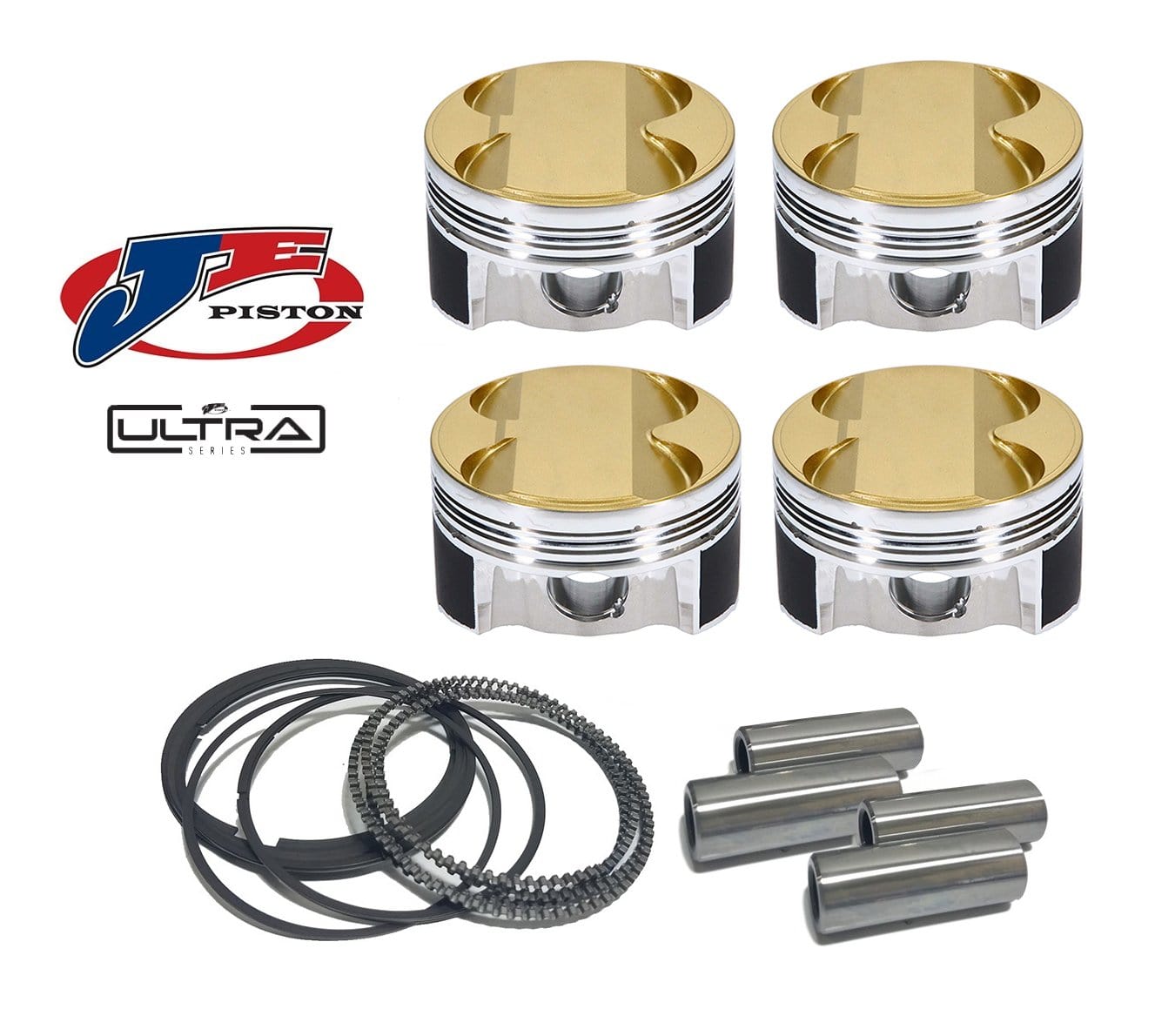

NOTE: Image shown not actual parts.
JE’s Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included.
Bore (in) 3.287
Bore (mm) 83.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -7.00
Series JE Ultra Series
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.905
Compression Height 1.155
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.210
Ringset Part Number JG1004-3287
Ring Brand ProSeal
Ringset Included No
Retainer Thickness 0.073
Retainer Lock Style Wire Lock
Retainer Lock Part Number 905-073-MW
Retainer Diameter (IN) 0.905
Replacement Single Piston 367865S
Piston Pin Inside Diameter 0.485
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 292
Pin Offset No
Pin Brand JE Pistons
Pin Part Number 905-2250-21-93C
Pin Included Yes
Pin Diameter (mm) 23.00
Oil Rail Support Included No
Deck Clearance -0.010
Brand JE Pistons
OE Part #'s:
06H-107-065-DM / 06H107065 DM / 06H 107 065 DM / 06H107065DM
06H-107-065-CC / 06H107065 CC / 06H 107 065 CC / 06H107065CC
06H-107-065-CK / 06H107065 CK / 06H 107 065 CK / 06H107065CK
06H-107-065-CL / 06H107065 CL / 06H 107 065 CL / 06H107065CL
06H-107-065-CM / 06H107065 CM / 06H 107 065 CM / 06H107065CM
06H-107-065-DD / 06H107065 DD / 06H 107 065 DD / 06H107065DD
06H-107-065-DG / 06H107065 DG / 06H 107 065 DG / 06H107065DG
06H-107-065-DJ / 06H107065 DJ / 06H 107 065 DJ / 06H107065DJ
6H1-070-65D-M / 6H107065D M / 6H1 070 65D M / 6H107065DM
JE’s Ultra Series pistons for sport compact and euro applications combine all of the best, most desirable piston features, such as thermal barrier crown coating, lateral gas ports, thick-wall wrist pins, and a revolutionary new forging technology for the ultimate in strength. Premium, gas-nitrided carbon steel rings are included.
Bore (in) 3.287
Bore (mm) 83.5
Top Compression Ring Thickness 0.0400
Second Compression Ring Thickness 0.0480
Oil Ring Thickness 0.111
Forging Type FSR
Volume (cc) -7.00
Series JE Ultra Series
Piston Head Type Inv Dome/Dish
Pin Diameter (IN) 0.905
Compression Height 1.155
Make AUDI / VOLKSWAGEN
Wrist Pin Style - floating or press fit Floating
Wall Type CHAMFERED
Wall Thickness (IN) 0.210
Ringset Part Number JG1004-3287
Ring Brand ProSeal
Ringset Included No
Retainer Thickness 0.073
Retainer Lock Style Wire Lock
Retainer Lock Part Number 905-073-MW
Retainer Diameter (IN) 0.905
Replacement Single Piston 367865S
Piston Pin Inside Diameter 0.485
Piston Pin Material 9310 NICKEL CARBON STEEL ALLOY
Piston Material 2618
Piston Pin Length (IN) 2.250
Piston Avg Wt 292
Pin Offset No
Pin Brand JE Pistons
Pin Part Number 905-2250-21-93C
Pin Included Yes
Pin Diameter (mm) 23.00
Oil Rail Support Included No
Deck Clearance -0.010
Brand JE Pistons
OE Part #'s:
06H-107-065-DM / 06H107065 DM / 06H 107 065 DM / 06H107065DM
06H-107-065-CC / 06H107065 CC / 06H 107 065 CC / 06H107065CC
06H-107-065-CK / 06H107065 CK / 06H 107 065 CK / 06H107065CK
06H-107-065-CL / 06H107065 CL / 06H 107 065 CL / 06H107065CL
06H-107-065-CM / 06H107065 CM / 06H 107 065 CM / 06H107065CM
06H-107-065-DD / 06H107065 DD / 06H 107 065 DD / 06H107065DD
06H-107-065-DG / 06H107065 DG / 06H 107 065 DG / 06H107065DG
06H-107-065-DJ / 06H107065 DJ / 06H 107 065 DJ / 06H107065DJ
6H1-070-65D-M / 6H107065D M / 6H1 070 65D M / 6H107065DM
