UroTuning Motor Mount Spacer Mk4 Dogbone Hardware Kit
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
Select Your Car to Verify Fitment
If your dogbone mount broke and you lost this hardware this kit will get you back together.

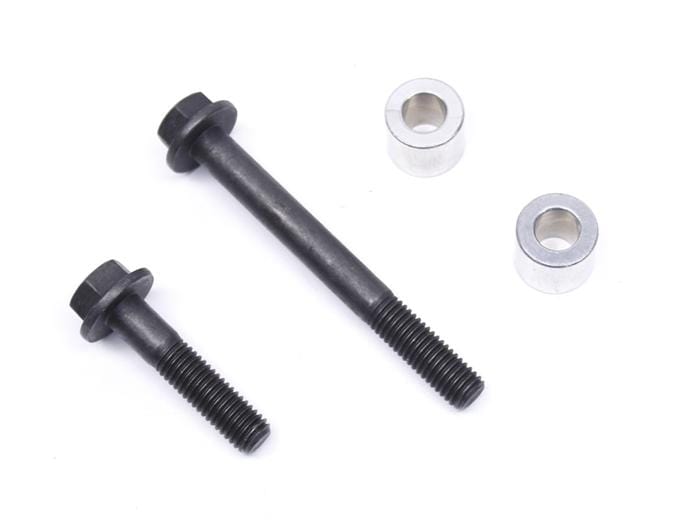

Kit includes:
- (1) Bolt - Partially Threaded M10x90 ⚠️
- (1) Bolt - Partially Threaded M10x45 ⚠️
- (2) 16mm Spacers
⚠️ Disclaimer: The two bolts contained in this Kit are NOT TTY like the OEM Bolts These are same-grade non-TTY replacements that meet or exceed OE strength.
When installing, do not follow the factory torque-plus-angle specification. Instead, use the standard torque values below and apply medium-strength blue threadlocker to clean threads for added safety if you want.
| Bolt Size | Thread Pitch | Grade 8.8 | Grade 10.9 | Grade 12.9 |
|---|---|---|---|---|
| M6 | 1.0 | 7 ft-lb | 9 ft-lb | 10 ft-lb |
| M8 | 1.25 | 16 ft-lb | 22 ft-lb | 26 ft-lb |
| M10 | 1.5 | 32 ft-lb | 44 ft-lb | 52 ft-lb |
| M12 | 1.75 | 57 ft-lb | 74 ft-lb | 89 ft-lb |
| M14 | 2.0 | 92 ft-lb | 118 ft-lb | 140 ft-lb |
| M16 | 2.0 | 144 ft-lb | 181 ft-lb | 218 ft-lb |
*Values are for clean, dry threads — reduce by 10–20% if lubricated.*
