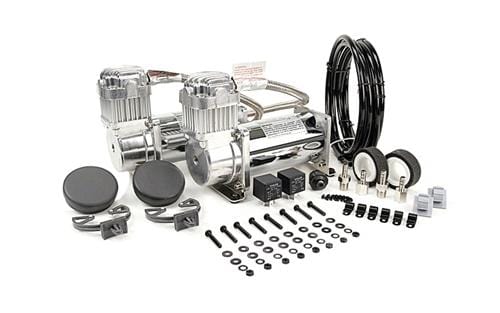

Viair 400C Air Compressor - Dual Compressor Kit | 23400
400C Dual Kit Includes:
- Dual 12-Volt, 40-amp Relays
- 110 PSI On/145 PSI Off Pressure Switch
400C Standard Features:
- Oil-less Design
- High Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture &Dust Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Inline Check Valve
- Remote Mountable Intake Filter Assembly
400C Specifications:
- 4.55 CFM @ 0 PSI
- 12-Volt
- Chrome Finish
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Amp Draw (both units): 51 Amps
- Min. Ambient Temp: -40 F
- Max. Ambient Temp: 158 F
- Dimensions (each): 9.00" L x 4.00" W x 7.00" H
- Net Weight (each): 8.00 lbs.
2.5 Gallon Tank Fill Rates:
- 0 To 145 PSI - 1 Min. 08 Sec.
- 110 To 145 PSI - 23 Sec.
5 Gallon Tank Fill Rates:
- 0 To 145 PSI - 2 Min. 20 Sec.
- 110 To 145 PSI - 45 Sec.
- Dual 12-Volt, 40-amp Relays
- 110 PSI On/145 PSI Off Pressure Switch
400C Standard Features:
- Oil-less Design
- High Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture &Dust Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Inline Check Valve
- Remote Mountable Intake Filter Assembly
400C Specifications:
- 4.55 CFM @ 0 PSI
- 12-Volt
- Chrome Finish
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Amp Draw (both units): 51 Amps
- Min. Ambient Temp: -40 F
- Max. Ambient Temp: 158 F
- Dimensions (each): 9.00" L x 4.00" W x 7.00" H
- Net Weight (each): 8.00 lbs.
2.5 Gallon Tank Fill Rates:
- 0 To 145 PSI - 1 Min. 08 Sec.
- 110 To 145 PSI - 23 Sec.
5 Gallon Tank Fill Rates:
- 0 To 145 PSI - 2 Min. 20 Sec.
