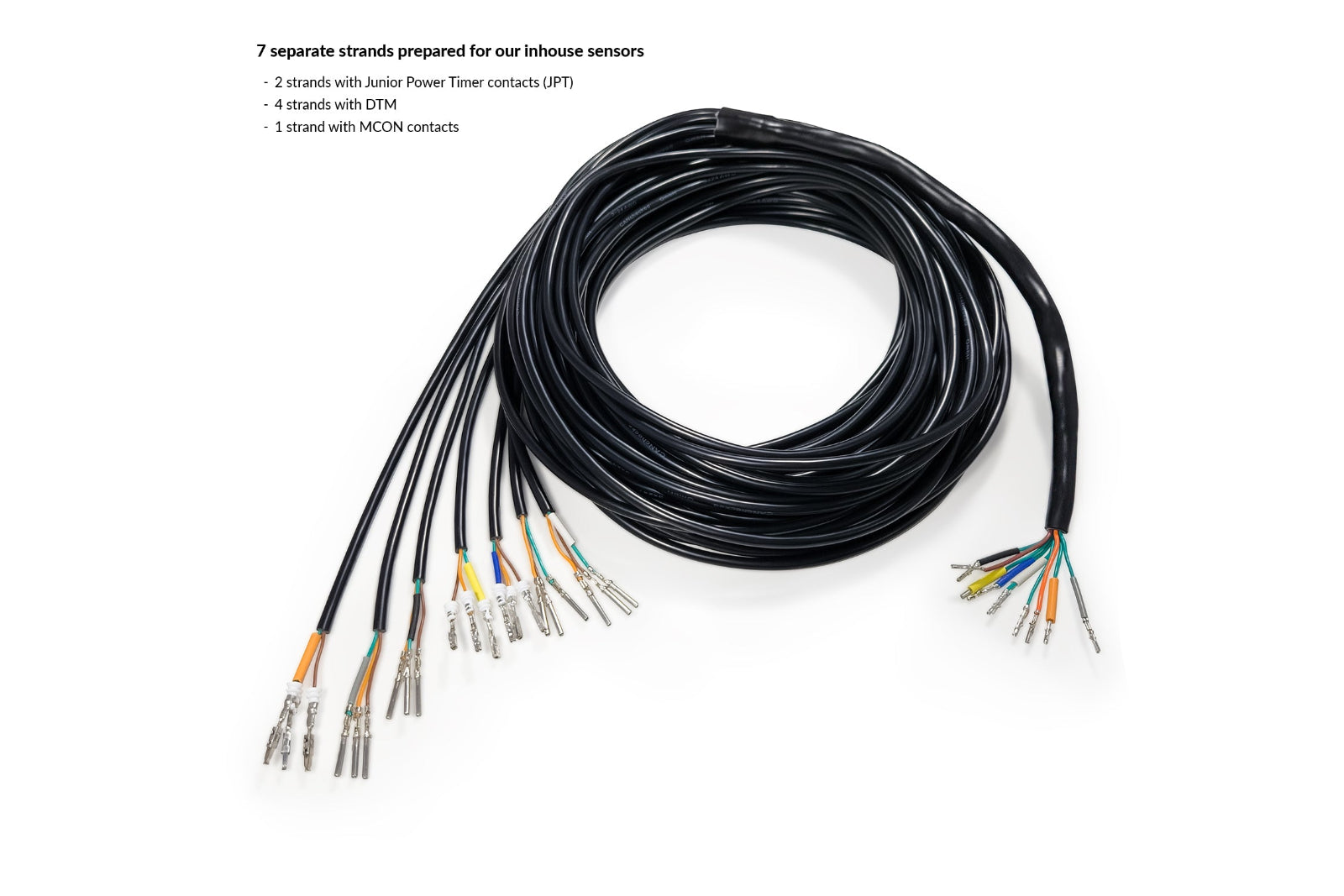

CANchecked ANC08 Compatible Harness - Expanded Sensor Support | CC22781

The CANchecked ANC08 Compatible Harness for Additional Sensors is a CANchecked sensor harness solution designed to supply enhanced and accurate measurement data for advanced monitoring and display systems in street and motorsport vehicles.

It is well suited for projects that require broad system compatibility, CAN Bus integration, and sensor expansion capability. With the ANC08, you can connect up to six analog sensors plus one digital combo sensor to your MFD15 with minimal effort-without worrying about wiring or crimping contacts.

The ANC08 is directly compatible with our in-house sensors.

Product Details

• Plug and play with our in-house sensors
• Uniform color scheme for clean wiring
• No special tools required - professionally crimped pins
• 300 cm length for versatile applications
• Individual strands for maximum flexibility
• Sheathed strands for long-lasting durability


Technical Overview

• If our defined wiring scheme is followed, the following sensors work right out of the box:
  • NTC01 (NTC temperature sensor)
  • TCC01 (Type-K exhaust gas temperature converter)
  • FLP01 (pressure sensor for liquid media)
  • BST10 (boost pressure sensor)
  • CFS02 (combined pressure and temperature sensor)
• Simply insert the pins into the supplied mating connector, plug the wiring harness into the display, assign the corresponding widgets on the display-and you're ready for the road
• The ANC08 must be pinned both at the display and at the sensor mating connectors


CANchecked Native Sensor Support

• NTC01 (NTC temperature sensor)
• TCC01 (Type-K exhaust gas temperature converter)
• FLP01 (pressure sensor for liquid media)
• BST10 (boost pressure sensor)
• CFS02 (combined pressure and temperature sensor)

Vehicle Applications

• Universal application
