CANchecked Connection Cable - MFD28/32 Gen2 to OBD2 + K-Line incl Fuse Adapter | CC22701

The CANchecked OBD2 Connection Cable with K-Line and Fuse Adapter provides a complete plug-and-play solution for connecting CANchecked Gen2 displays directly to a vehicle's OBD2 port. Designed for use with the MFD28, MFD32, and MFD32S displays, this cable enables real-time access to vehicle diagnostic and performance data while simplifying installation through integrated power and communication connections.

Once installed, the cable allows the display to read and display OBD2 data directly from the vehicle's control modules, including live operating parameters and stored fault codes. Pre-configured OBD TRI files simplify setup, allowing users to quickly configure the display and begin monitoring vehicle data with minimal effort. Depending on vehicle support and configuration, up to 128 OBD2 values can be displayed simultaneously.

The 2-meter cable assembly features an OBD2 connector on the vehicle side and both Connector A and Connector B for direct connection to compatible CANchecked displays. In addition to CAN bus communication, the integrated K-Line connection expands compatibility with supported vehicles. A dedicated power lead extends approximately 15 cm from the harness and connects to the vehicle's fuse panel. Included standard and mini fuse adapters provide flexible installation options when available fuse positions are limited.

Product Details

• Designed for CANchecked MFD28, MFD32, and MFD32S Gen2 displays
• Provides direct OBD2 communication and vehicle data access
• Integrated K-Line connection for expanded vehicle compatibility
• Supports display of live vehicle data and stored fault codes
• Displays up to 128 OBD2 values simultaneously
• Compatible with pre-configured CANchecked OBD TRI files
• 2-meter (6 ft 6 in) cable length
• OBD2 connector on vehicle side
• Connector A and Connector B for display connection
• Power supply connection through dedicated fuse-panel lead
• Ground connections: Pins 4 and 5
• CAN High connection: Pin 6
• CAN Low connection: Pin 14
• Approximately 15 cm auxiliary power lead
• Plug-and-play installation

What's Included

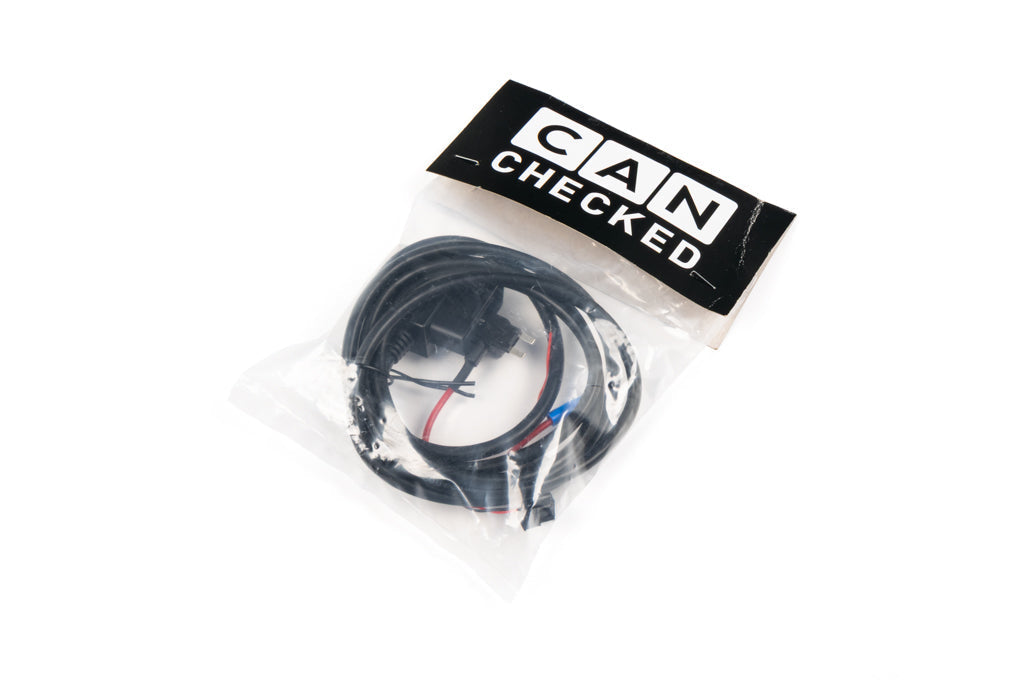

• 1x CANchecked OBD2 Connection Cable with K-Line
• 2-meter cable assembly with Connector A and Connector B
• 1x Standard Fuse Adapter
• 1x Mini Fuse Adapter

Vehicle Applications

• Universal application
