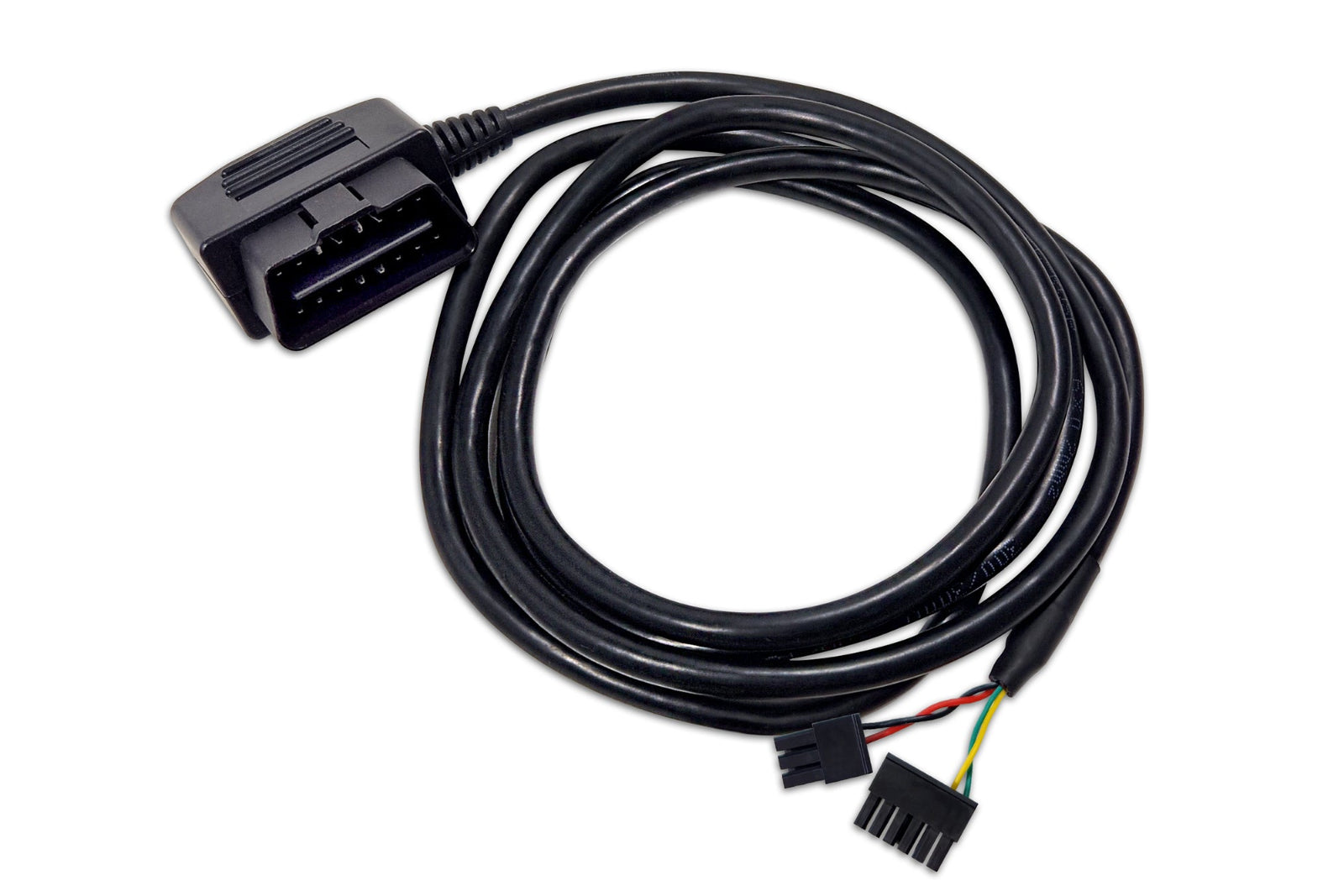

CANchecked Connection Cable - VAG Models - MFD15 Gen2 to OBD2 - Pin1 KL15 | CC22732

The CANchecked OBD2 Connection Cable for MFD15 Gen2 Displays is designed to provide direct CAN bus communication between compatible CANchecked displays and supported VW and Audi vehicles. Specifically engineered for applications that utilize Terminal 15 (Pin 1) as the ignition-switched power source, this cable allows the display to access live OBD2 data and diagnostic information directly through the factory OBD2 port.

Once connected, the cable enables real-time monitoring of OBD2 parameters broadcast by the vehicle's control modules, including engine data, operating values, and stored fault codes. Compatible pre-configured OBD TRI files simplify setup, allowing users to quickly configure their display and begin viewing data with minimal effort. Up to 128 OBD2 values can be displayed simultaneously, providing comprehensive access to vehicle diagnostics and performance information.

The cable features a 2-meter (6 ft 6 in) length for flexible routing and installation while maintaining a clean, plug-and-play connection between the display and vehicle diagnostic port. Designed specifically for CANchecked MFD15 Gen2 displays, this cable provides an efficient solution for integrating factory vehicle data into your CANchecked monitoring system.

Product Details

• Designed for CANchecked MFD15 Gen2 displays
• Optimized for VW and Audi applications utilizing Terminal 15 (Pin 1)
• Provides direct OBD2 and CAN bus communication
• Supports real-time display of vehicle diagnostic data
• Displays up to 128 OBD2 values simultaneously
• Compatible with pre-configured CANchecked OBD TRI files
• Cable length: 2 meters (6 ft 6 in)
• Terminal 15 (Pin 1) connection
• Ground connections: Pins 4 and 5
• CAN High connection: Pin 6
• CAN Low connection: Pin 14
• Plug-and-play installation

What's Included

• 1x CANchecked OBD2 Connection Cable
• 2-meter cable assembly for MFD15 Gen2 displays

Vehicle Applications

• Universal application
