CANchecked Mazda ND Miata MX5 MFD15 Multi Function Display | 1.5" Gen2 (LHD) | CC53040

The CANchecked MFD15 Gen2 Data Display for Mazda MX-5 ND provides a fully integrated vehicle-specific monitoring solution designed to bring critical engine and vehicle data directly into the driver's line of sight. Supplied with a Mazda MX-5 ND-specific mounting bezel and plug-and-play connection harness, this package delivers OEM-style integration while unlocking extensive monitoring, diagnostic, and customization capabilities.

At the heart of the system is the compact MFD15 Gen2 display, featuring a high-contrast OLED screen engineered for exceptional visibility even in direct sunlight. The display supports CAN bus communication, OBD2 data acquisition, analog sensor inputs, and WiFi connectivity, allowing users to configure the display, update firmware, upload custom startup screens, and manage settings through CANchecked's Online Display Setup Software (oDSS).

Designed for both street and motorsport applications, the MFD15 Gen2 supports up to eight customizable display pages and can monitor a wide range of engine, performance, and diagnostic parameters. Whether you're tracking oil temperature, boost pressure, ethanol content, exhaust gas temperatures, or ECU data, the system provides a highly configurable platform tailored to your specific requirements.

Product Details

• Vehicle-specific kit designed for Mazda MX-5 ND applications
• High-contrast OLED display with excellent daylight visibility
• Compact 52mm diameter design with 12.5mm installation depth
• Integrated shift light and warning LED functionality
• CAN bus and OBD2 communication support
• WiFi-enabled configuration and firmware updates through oDSS
• Supports up to 8 customizable display pages
• Monitors up to 64 ECU parameters depending on vehicle and ECU support
• Displays up to 128 OBD2 values simultaneously
• Compatible with ISO 11898-2 and SAE J2284 communication protocols
• Supports custom CAN streams and numerous aftermarket ECUs
• Connect up to 6 analog sensors directly to the display
• Direct ethanol sensor support with optional license
• Custom startup logo and display color customization
• Optional live data logging capability
• Optional CAN switching and analog input forwarding functionality

Display Modes

• Analog Gauge
• Dual Value Display
• Single Value Display
• Gear Indicator
• 4-Value Display
• 6-Value Display
• Bar Graph Displays
• Round Gauge Display
• Performance Meter
• Multi-Value Dashboard Views

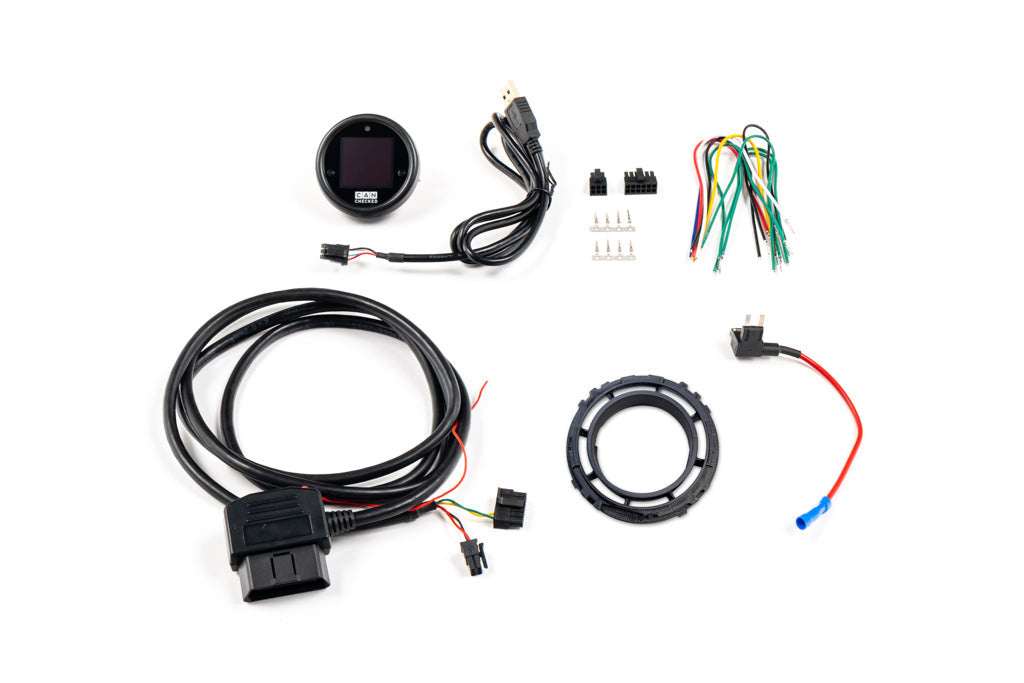

What's Included

• CANchecked MFD15 Gen2 Data Display
• Mazda MX-5 ND-specific mounting bezel
• Vehicle-specific connection harness
• Quick Start Guide
• Connector B (6-pin Molex)
• Connector C (12-pin Molex)
• Pre-assembled wiring leads
• Additional crimp pins
• Two 1K pull-up resistors for NTC sensors

Compatible CANchecked Accessories

• ETK01 External Rotary Controller
• CBD08 CAN Distribution Hub
• ANC04 Analog Input Harness
• NTC01 Temperature Sensor
• TCC01 Type-K Exhaust Gas Temperature Converter
• FLP01 Pressure Sensor
• BST10 Boost Pressure Sensor

Vehicle Applications

• Mazda ND Miata MX-5

Vehicle Compatibility & Data Availability

CANchecked products communicate directly with your vehicle via the CAN Bus. As a general guideline, CAN Bus became widely available in production vehicles from approximately 2008 onwards. Compatibility and the amount of available data depend on the vehicle manufacturer, model, model year, installed control units, and software version.

Many modern vehicles provide only limited information through standard OBD diagnostics. For selected vehicles, CANchecked offers dedicated integrations that access additional vehicle data directly from internal vehicle communication networks. Available functions and parameters may vary between vehicles, even within the same model range.

Please note that not all displayed values are intended for diagnostic or safety-critical purposes. While we strive to provide accurate information, displayed data should not be relied upon as the sole source for vehicle operation, diagnostics, maintenance, tuning, or safety-related decisions.

Customers are responsible for verifying compatibility with their specific vehicle before purchase and installation.
