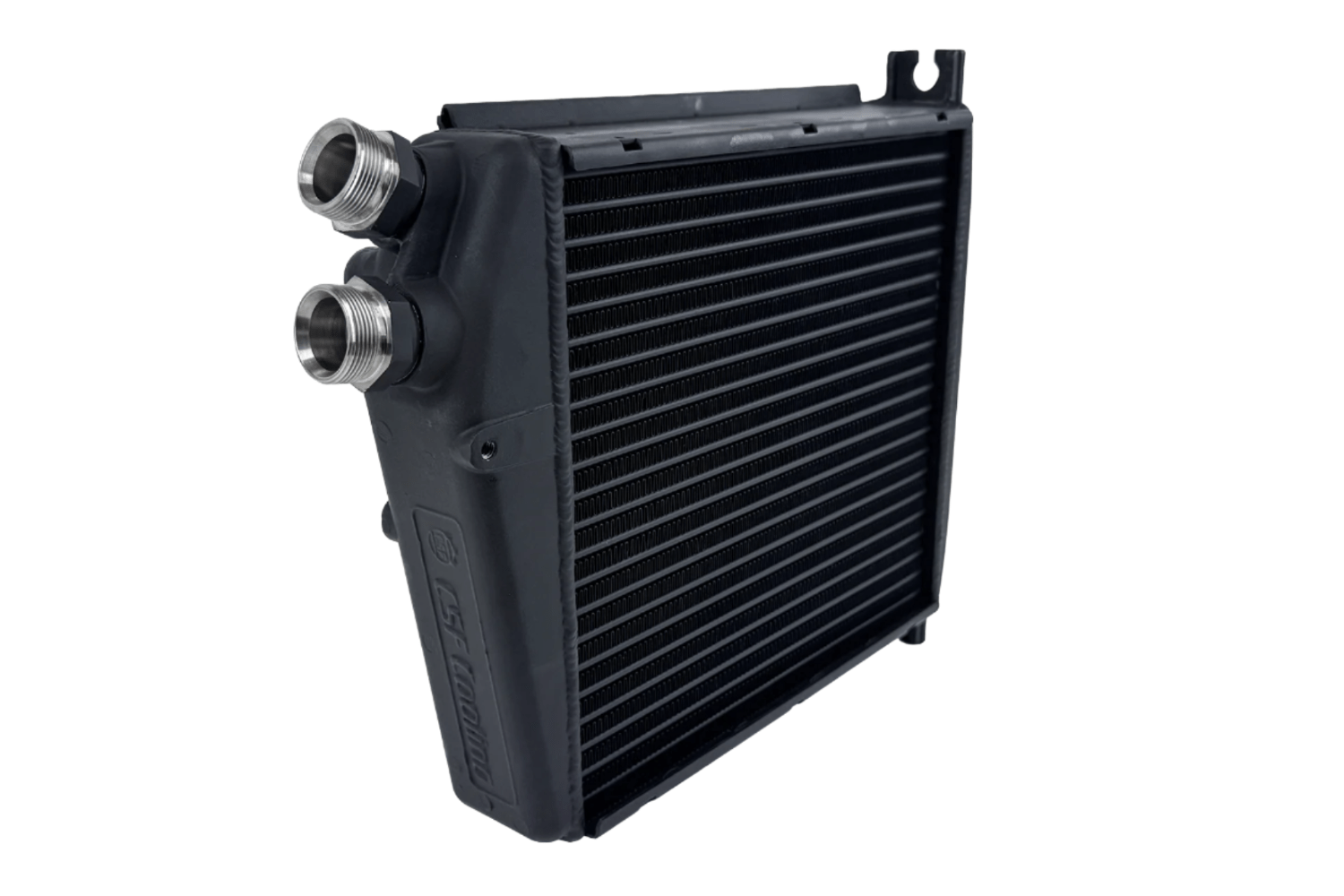

CSF Porsche 964 & 993 911 OEM+ Performance Fender Oil Cooler | CSF-8334

When it comes to the Porsche 911, few generations stir as much passion and controversy as the 964 and 993. These two generations represent the final chapters of the air-cooled era. Porsche did their best to bridge the gap between classic design and modern performance. However, there were some challenges that were definitely hard to overcome.

Both the 964 and 993 ran hotter than earlier air-cooled 911s for a variety of reasons. Increased performance output, new emissions regulations, and limited space in the engine bay were all contributing factors. Porsche was definitely stretching the limits of air/oil cooling. Especially given the cooling technology and design of that day and age.

Innovative Rolled Fin Design – Stronger/more durable and Less Clogging
Wider air passages for improved flow
10% Increase in airflow
16% Larger Core Volume
6% Increase in Heat Dissipation
No change in oil pressure vs OEM

OEM+ / High-Performance recreation of the original Längerer & Reich oil cooler

Modern Dual Pass 50mm High-Performance Tube and Fin Core

Stainless Steel “Widemouth” M30 x 1.5 High-Flow Fittings

Improved Design of Fan Shroud Mounting Locations for Easier Installation

100% All Aluminum TIG-Welded Construction

Satin Black Finish

True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications

Individually Leak and Pressure Tested at 8bar (116psi)

CSF Logo Stamping and Individually Serialized for Quality Control and Authenticity

Product Specific Foam Inserts and High Quality 5-Ply Box to Ensure Damage Free Shipment Worldwide

Includes Warranty Sheet with Torque Specifications

10-Year Limited Warranty

OEM NUMBERS

• Porsche: 964 207 220 02

• Porsche: 964 207 220 03

• Porsche: 964 207 220 04

APPLICATIONS

• 1989-1994 Porsche 964 911 Carrera 4 – 3.6L H6

• 1990-1994 Porsche 964 911 Carrera 2 – 3.6L H6

• 1991-1992 Porsche 964 911 Turbo – Turbocharged 3.3L H6

• 1993-1994 Porsche 964 911 RS America – 3.6L H6

• 1993-1994 Porsche 964 911 Turbo 3.6 – Turbocharged 3.6L H6

• 1994 Porsche 964 911 Speedster – 3.6L H6

• 1994-1998 Porsche 993 911 Carrera – 3.6L H6

• 1994-1998 Porsche 993 911 Carrera 4 – 3.6L H6

• 1996-1998 Porsche 993 911 Carrera 4S – 3.6L H6

• 1995-1996 Porsche 993 911 Carrera RS – 3.8L H6

• 1996-1998 Porsche 993 911 Targa – 3.6L H6

• 1996-1997 Porsche 993 911 Turbo – Turbocharged 3.6L H6

• 1995-1997 Porsche 993 911 GT2 – Turbocharged 3.6L H6

• 1998 Porsche 993 911 Carrera S – 3.6L H6
