Dinan's High Flow Air Mass Meter and Intake Assemblies reduce the intake restriction presented by the stock configuration for a better breathing engine. Increasing the flow of cool, oxygen rich air increases power output by 21 horsepower, as well as providing improved throttle response. The Dinan High Flow Air Mass Meters are also included, providing a full 22% increase in air flow.

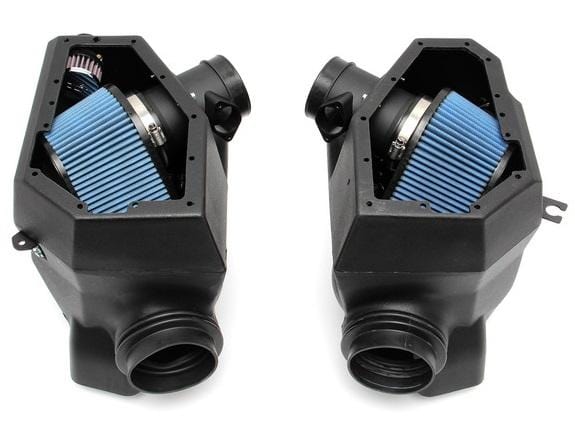

The stock air filter housings are replaced with Dinan's larger volume units that have been designed to accommodate oval shaped filters, providing greater surface area for superior flow. The intake enclosures also include the activated carbon absorption material, providing the same function as the stock configuration without the significant restriction to air flow. The Dinan air boxes are completely sealed enclosures, virtually eliminating the pressure drop measured with the stock units. The sealed enclosures also insulate against power-robbing heated air under the hood for maximum power output.
The carbon fiber air box lids are both functional and a handsome addition to the engine compartment. The weave perfectly matches the Dinan front strut tower brace for a very tasteful high performance look.
Note: Dinan Performance Software is highly recommended.
Installation Instructions: Dinan E6X M5/M6 Carbon Intake D763-0044 Installation
- Max +21 HP & +14 lb-ft of torque when used in conjunction with the DINANTRONICS Performance Tuner as well as Dinan exhaust.
- Improved Throttle Response
- Inlet air temps reduced by nearly 40 degrees
- Aircraft quality carbon fiber airbox and tube captures cool air from the lower grille and increases air volume
E60 BMW M5 - S85 5.0L E63 / E64 BMW M6 - S85 5.0L
