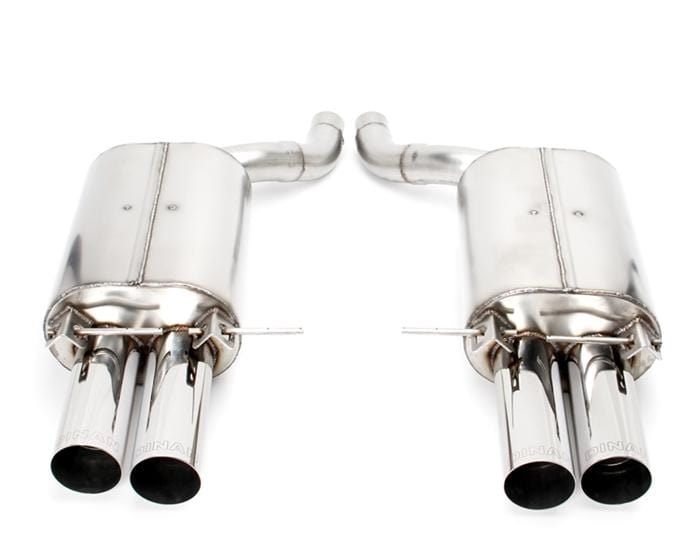

The Dinan M5 exhaust system provides maximum flow characteristics for optimum power gains while producing a civilized, yet very sporty exhaust note that is appropriately aggressive at wide open throttle. And there's none of that irritating low rpm ''drone'' that is common with so many aftermarket mufflers. The mufflers are manufactured from 100% 304 stainless steel inside and out for maximum resistance to corrosion and nearly a 30% reduction in weight, eliminating over 20 lbs.
The four 3.5'' diameter polished stainless steel tips not only give the car a more aggressive look but also feature Dinan's new ''Cool Tip'' design that effectively reduces temperatures in order to minimize radiant heat that can effect body work over time, as well as avoid discoloration of the tips themselves. The Cool Tips also avoid the possibility of a nasty burn while loading items in the trunk. Employing the principle of rarefaction, the design features an inner and outer tip with a vent at the base. When a positive pressure wave travels to the end of an open pipe and is ultimately expelled into the atmosphere, a rarefaction or momentary drop in density of the surrounding air is created behind it. This momentary drop in the density of the air surrounding the pipe's exit creates a vacuum, pulling the air from the surrounding area to fill the void. The vent at the base of each outer tip then enables air to be drawn in, effectively cooling the tips.
Utilizing the factory brackets and hangers, the Dinan exhaust mounts in a factory-like fashion for a perfect fit and clean installation.
- +9 HP @ 8000 RPM / +6 lb/ft @ 8000 RPM
- Uses the factory brackets and hangers for a factory-like fitment
- Approx. 20lbs Weight Savings
- Dinan's Tuned Resonance Chamber Technology
- 100% 304 stainless steel construction
- Cool Tips reduce heat to avoid discoloration & bodywork damage
- Quad 3.5" laser engraved polished stainless steel or black ceramic exhaust tips
Installation Instructions: Dinan E60 M5 Axle-Back Exhaust D660-9000A Instructions
- E60 BMW M5 - S85 5.0L
