IS20 Turbo Upgrade Kit for IS12 Gen 3 Mk7 Golf 1.8T / Alltrack 1.8T / Sportwagen 1.8T | 06K145874M-KT

If you are looking to upgrade your IS12 Turbo or just replace your IS20 Turbo this Kit provides you with all the parts needed to professionally install a IS20 Turbo.

The IS20 Turbo is the factory turbo for the following models:

• 2015+ VW Mk7 / Mk7.5 Gti 2.0T
• 2018+ VW MQB Atlas 2.0T
• 2015+ Audi 8V A3 2.0T
• 2016+ Audi Mk3 TT 2.0T

The IS20 Turbo is an upgrade from the IS12 Turbo for the following models:

• 2015+ VW Mk7 / Mk7.5 Golf 1.8T
• 2015+ VW Mk7 Sportwagen 1.8T
• 2017+ VW Mk7 Alltrack 1.8T

Please note that proper tuning software must be used when upgrading from a IS12 Turbo - check with your tuning software provider.

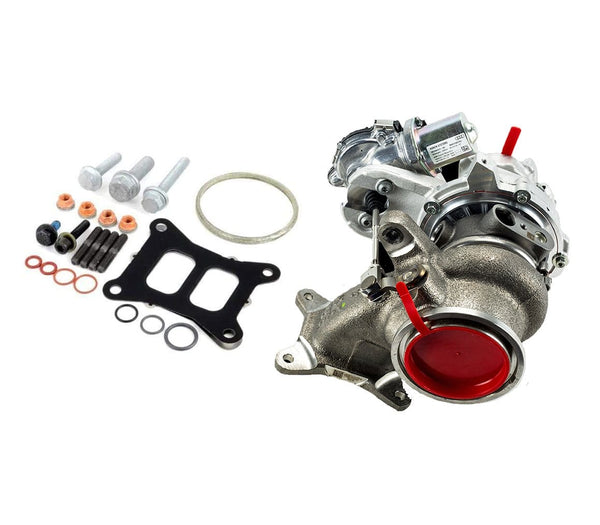

Included in this kit:

• 06L253039A (Elring 691780) - Turbo Gasket
• 5Q0253115B - Turbo Gasket
• N90067202 - Turbo Oil Line Gaskets (x2)
• N91231701 - Turbo Mounting Studs (x4)
• WHT007210 - Turbo Mount Nuts (x4)
• WHT006112 - Turbo Oil Line Gasket
• WHT006113 - Turbo Oil Line Gasket
• N91103701 - Turbo Mount Bolt
• N90643907 - Turbo Mount Bolt
• N91167101 - Hex Bolt
• N10699401 - Hex Bolt
• N91201001 - Hex Bolt
• WHT006114 - Coolant Hose O-Ring
• WHT006124 - Coolant Hose O-Ring
• WHT005558 - Coolant Hose O-Ring

• 06K145874M - IS20 Turbocharger (IHI OEM)


  Part #'s


  Turbo Gasket

  06L-253-039-A  / 06L253039 A  / 06L 253 039 A  / 06L253039A


  Turbo Gasket Ring

  5Q0-253-115-B  / 5Q0253115 B  / 5Q0 253 115 B  / 5Q0253115B


  Turbo Oil Line Gasket

  N90-067-202-  / N90067202   / N90 067 202   / N90067202


  Turbo Mounting Stud

  N91-231-701-  / N91231701   / N91 231 701   / N91231701


  Turbo Mount Nuts

  WHT-007-210-  / WHT007210   / WHT 007 210   / WHT007210


  Turbo Oil Line Gaskets

  WHT-006-112-  / WHT006112   / WHT 006 112   / WHT006112

  WHT-006-113-  / WHT006113   / WHT 006 113   / WHT006113


  Turbo Mount Bolts

  N91-103-701-  / N91103701   / N91 103 701   / N91103701

  N90-643-907-  / N90643907   / N90 643 907   / N90643907


  Hex Bolts

  N91-167-101-  / N91167101   / N91 167 101   / N91167101

  N10-699-401-  / N10699401   / N10 699 401   / N10699401

  N91-201-001-  / N91201001   / N91 201 001   / N91201001


  Coolant Hose O-Ring

  WHT-006-114  / WHT006114   / WHT 006 114   / WHT006114

  WHT-006-124  / WHT006124   / WHT 006 124   / WHT006124

  WHT-005-558  / WHT005558   / WHT 005 558   / WHT005558
