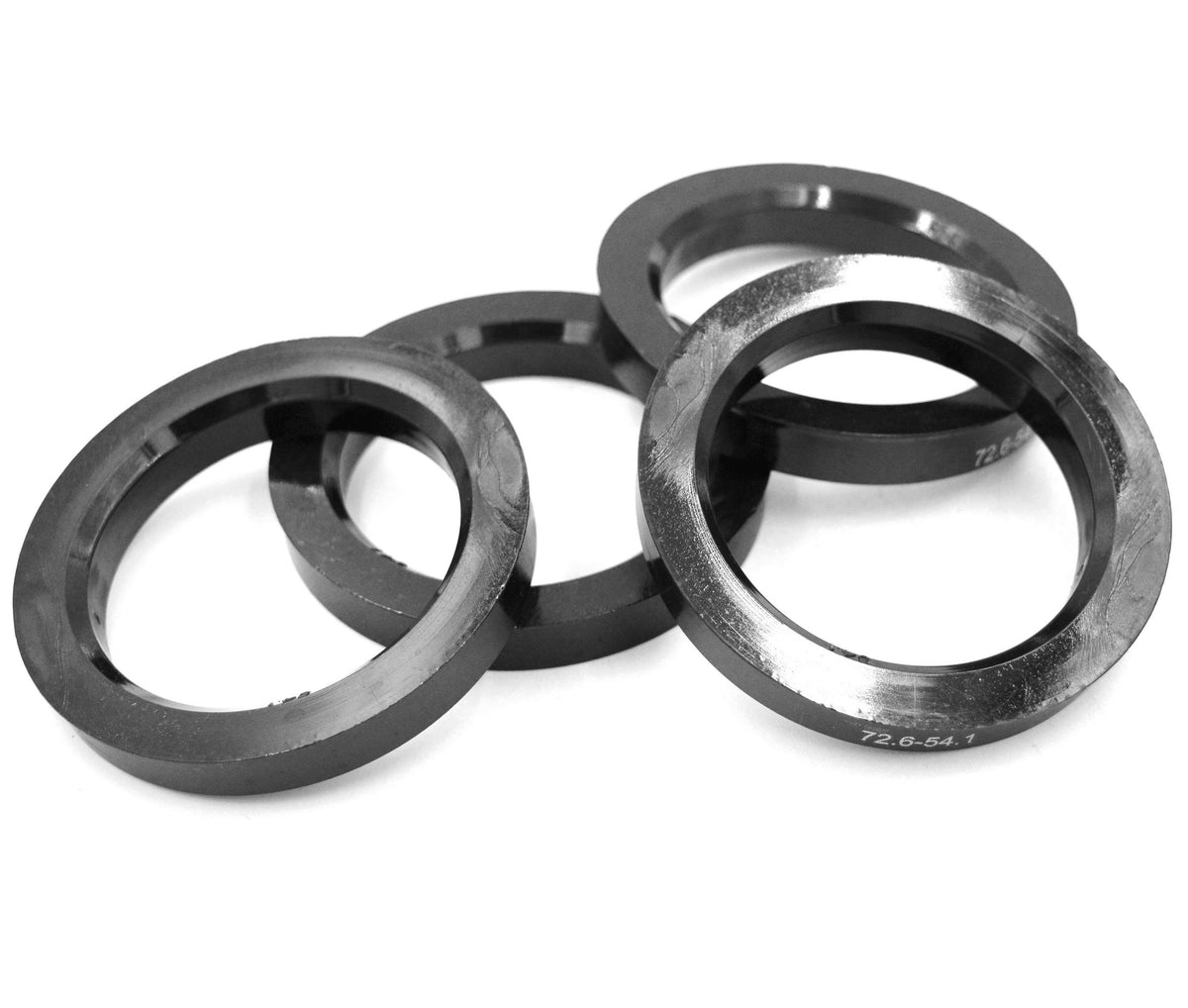

Kansei Hub Centric Rings (Set of 4) | C73-5615

Kansei Wheels Hub Centric Rings are the perfect way to finish your new wheel installation. These hub rings ensure a perfectly smooth, vibration free ride.

Features

• High quality plastic polycarbonate construction
• Sturdy Construction
• Application Specific fitment
• Easy Installation



VEHICLE	KANSEI HUB RING SIZE
CIVIC FK8 TYPE R	OPTION 2
WRX, STI	OPTION 1
350Z, 370Z	OPTION 4
G35, G37, Q50, Q60	OPTION 4
FRS, BRZ, GT86	OPTION 1
240SX ALL	OPTION 4
SKYLINE R32, R33, R34	OPTION 4
300ZX	OPTION 4
ACURA TL	OPTION 3
ACURA RSX	OPTION 3
HONDA PRELUDE	OPTION 3
LEXUS IS, SC, RC	OPTION 5
SUPRA A70, A80	OPTION 5
MAZDA, EVO	OPTION 6
AUDI, VW *5X100 ONLY*	OPTION 7



Can't find your vehicle on our list? Email us! Sales@kanseiwheels.com

What are hub-centric rings for?
Most aftermarket wheels have a large center hub diameter so the wheels will fit a variety of different vehicles. The hub-centric rings are made to fill the gap between the wheel and the vehicles hub to ensure the wheel is perfectly centered. This not only makes installation of your new wheels much easier but will also help eliminate any vibrations you may encounter.

How do I know which hub ring to choose?
Hub rings are sized by using two different numbers that are measured in millimeters. The first number such as 73.1 is the diameter of the center bore on the wheel and is the outside diameter of the hub ring. The second number such as 66.5 is the diameter of the hub on your vehicle and is the inside diameter of the hub ring.

OTHER COMMON APPLICATIONS Kansei does not currently stock Rings for these specific applications but these are the Dimensions (ID & OD)
VEHICLE	HUB DIMENSION (ID)	KANSEI WHEEL BORE (OD)
TC/COROLLA	54.1	73.1
MX-5 MIATA	54.1	73.1



What is the size I need?

• Size 1 - 56.1 ID to 73.1 OD
• Size 2 - 64.1 ID to 72.56 OD
• Size 3 - 64.1 ID to 73.1 OD
• Size 4 - 66.1 ID to 73.1 OD
• Size 5 - 60.1 ID to 73.1 OD
• Size 6 - 67.1 ID to 73.1 OD
• Size 7 - 57.1 ID to 73.1 OD

What's Included?
Four (4) Hub Centric Rings of your choice.
