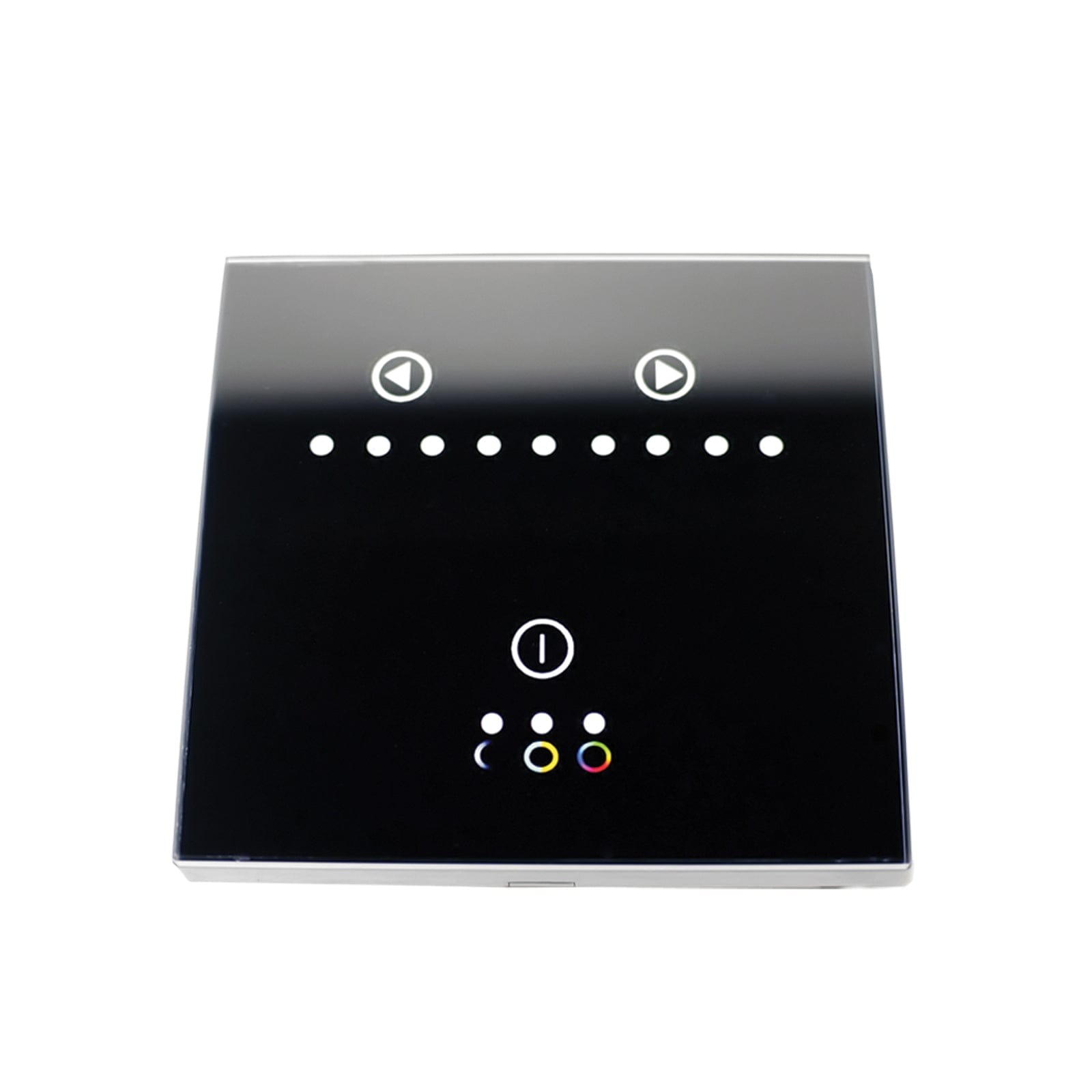

ORACLE Touch Panel RGB Dimmer

The ORACLE Touch Panel RGB Dimmer is a newly developed high-end controller. It adopts a glass panel design, giving it a modern, sleek appearance. It has a high precision touch control chip, that increases touch sensitivity and reduces mistaken triggers. These control panels are specially used for controlling a variety of LED Lighting, such as RGB Flex LED Lighting Strips, wall washer lights, panel lights, etc. It features easy connection and user-friendly functionalities including jump changing, gradual changing, strobe, flash, and other modes.

Product Specs:

• Working Temperature: -4 - 140 F
• Supply Voltage: DC 12-24V
• Weight: 5.8 oz
• Dimensions: 3.3 x 3 x 1.4 inches
• Output: 3 Channel
• Output Current: 4A (each channel)
• Connection Mode: Common Anode
• Output Power: 12V < 144W, 24V < 288W
• Static Power Consumption: < 1W

Button Description:

• The Power Button:
  • A short press turns the controller on/off at any state.
  • A long press cycles between 3 different modes (shown by indicators).
• Indicator 1: Indicates that RGB mode is selected.
• Indicator 2: Indicates that color temperature mode is selected.
• Indicator 3: Indicates that dimmer mode is selected.
• The Left Arrow Button: Used to increase parameters (settings).
• The Right Arrow Button: Used to reduce parameters (settings).

Function Instruction

RGB Mode:

• A short press of the Left Arrow Button increases the mode within the RGB Function.
• A long press of the Left Arrow Button increases the brightness or speed.
• A short press of the Right Arrow Button reduces the mode.
• A long press of the Right Arrow Button reduces the brightness or speed.

Mode Changes Table:

*Note* This table shows the outputs while testing on an ORACLE 2.0 RGB Flex strip. Functions may be different when using other types of RGB strips.

• The Left Arrow Key increases the mode.
• The Right Arrow Key reduces the mode.

Function Instruction Dimmer Mode:

• Left Arrow Key increases the brightness.
• Right Arrow Key reduces the brightness.
