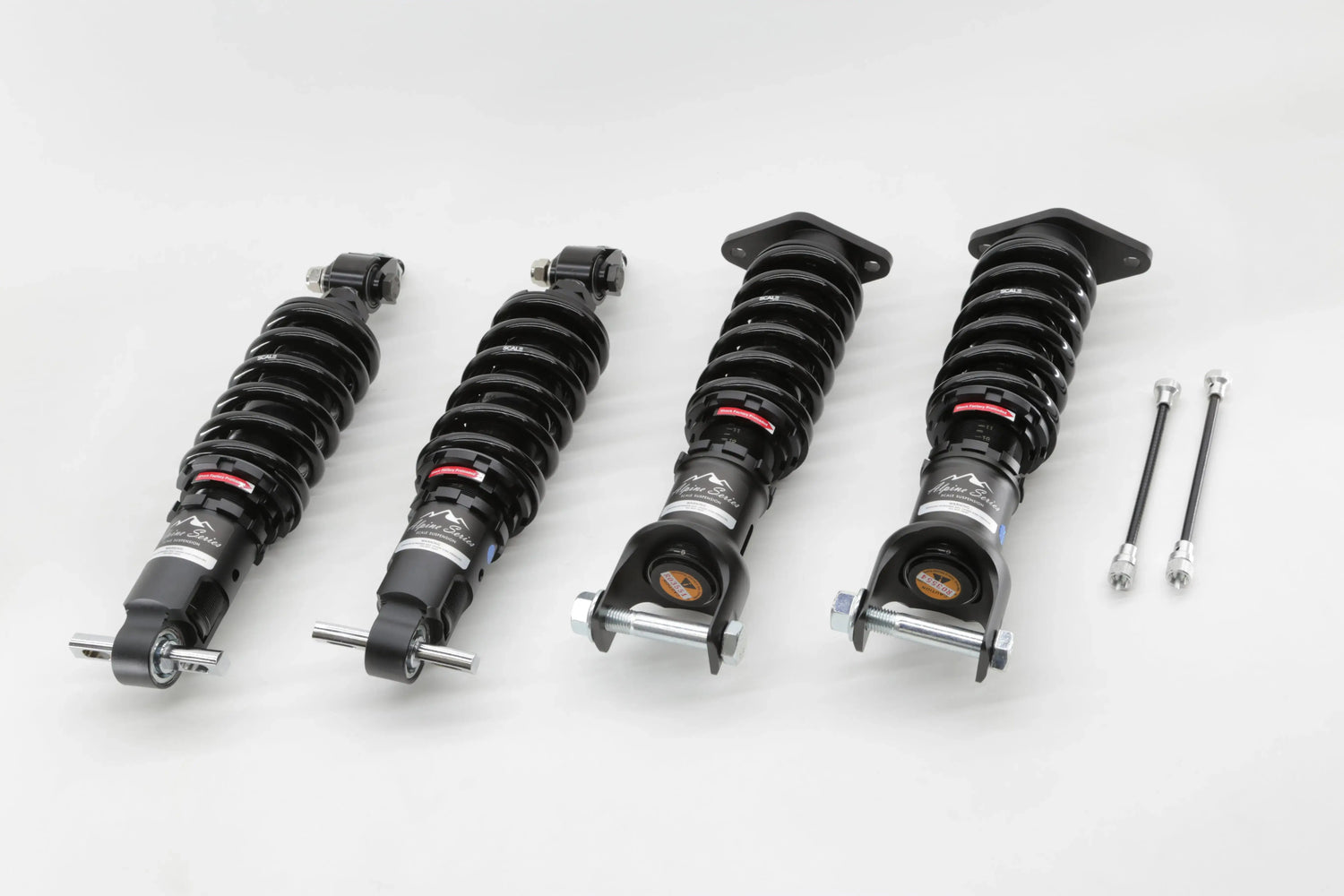

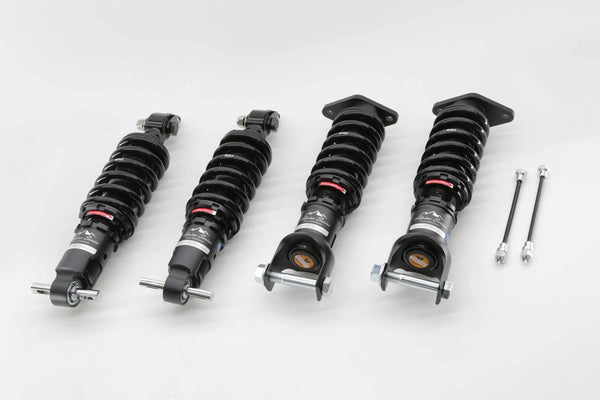

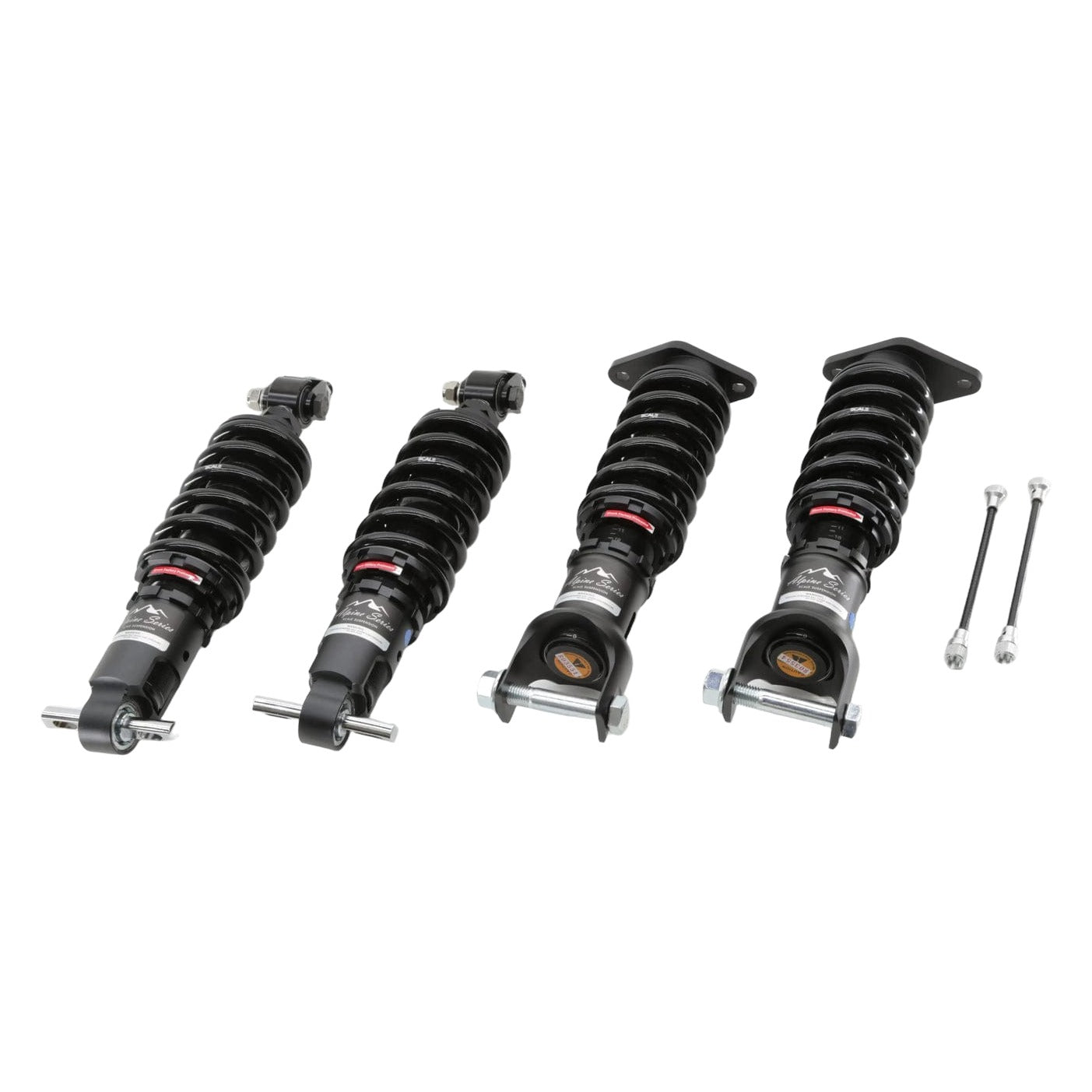

Scale Suspension Alpine Series Coilover - Chevrolet Corvette C6/Z06/ZR1 2005-2013

The monotube design configuration, added to the completely threaded body result in a fully adjustable long lasting suspension. As the ride height is set by the overall shock length, the spring preload, comfort level and suspension travel remains the same at any ride height setting compared to other suspension where the ride height is set by the spring seat, resulting in reducing the allowed travel as you lower the ride height.

The CV05-AS is offered in Regular version only. This version allow a ride height adjustment from stock to approximately -2.0 inch. Comfort level is really good for daily use and suspension travel is significantly reduced to prevent any rubbing issue when lowered.

This application use a double wishbone suspension configuration for both front and rear. This means that the shock have no direct impact on the wheel alignment. Every cars alignment is affected the more you lower it and depending on the suspension geometry. The C6 Corvette factory control arm have camber/caster adjustment eccentric bolt to set your wheel alignment to factory specs to prevent excessive tire wear after changing the ride height.
