Timing Kits for the CDVC EA390 engine!

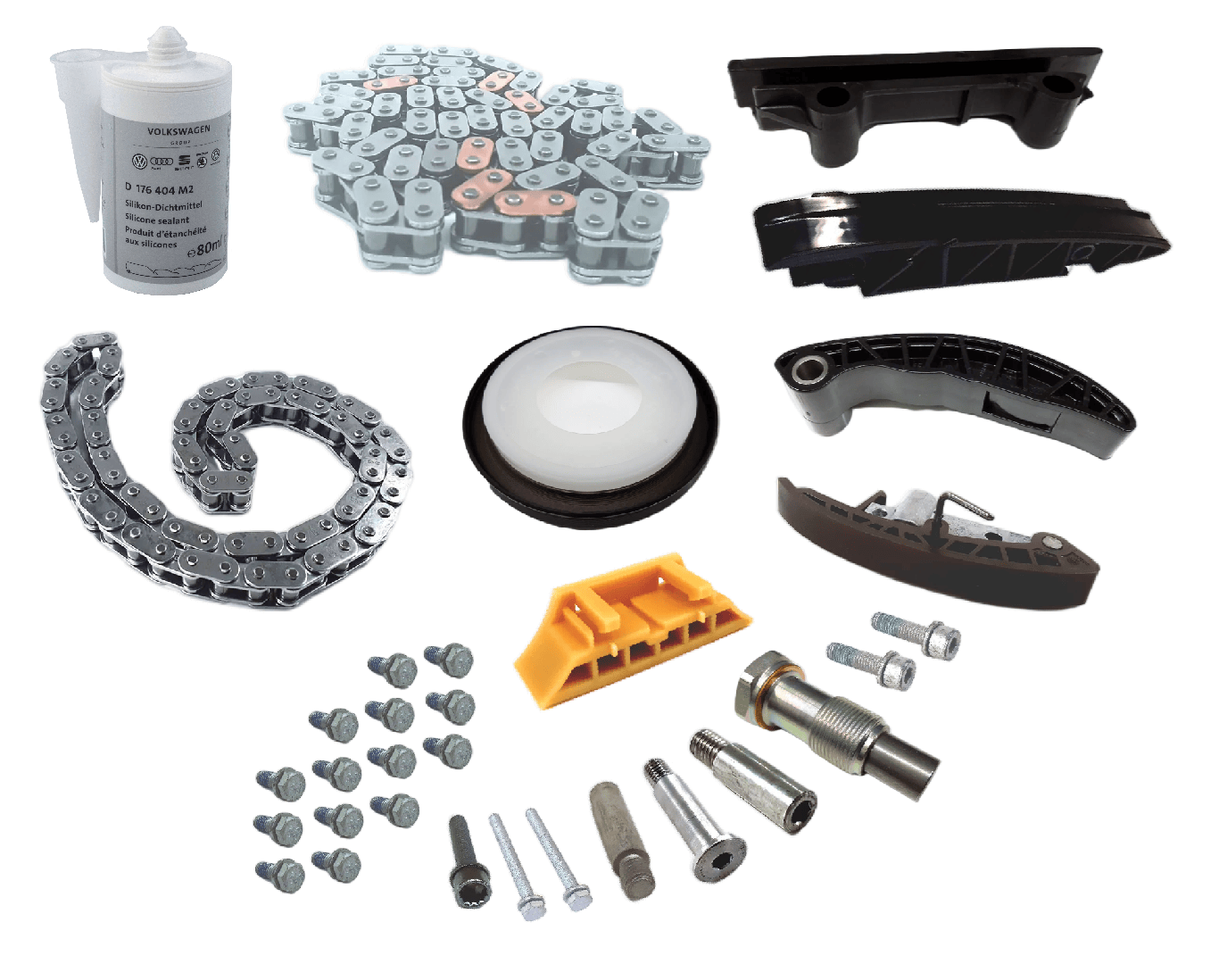

Kit Includes:
- (1) 03H109465A - Timing Chain (Lower)
- (1) 03H109503 - Timing Chain (Upper)
- (1) 021109469 - Timing Chain Guide Rail Lower
- (1) 03H109467A - Engine Timing Chain Tensioner
- (1) 021109471 - Timing Chain Guide Rail Lower Bolt
- (1) 03H109513B - Guide Rail Lower - VR6 3.6L
- (1) 03H109509A - Upper Guide Rail - VR6 3.6L
- (1) WHT008987 - Guide Pin (10x29x40) - Single Rail
- (1) N10613901 - Mk5 R32 Timing Chain Guide Bolt M8x45
- (1) 066109511D - Pin
- (1) 066109514A - Timing Chain Upper Guide Rail (Upper)
- (14) N10082912 - Hex Bolt (M6x16)
- (2) N10116003 - Bolt (M6x58)
- (2) N90355905 - Bolt
- (1) 021103051C - Crankshaft Seal Rear
- (1) D176404M2 - Oil Pan Gasket Sealer
- (1) 03H109507 - Timing Chain Tensioner Bolt
OE Part #'s
Timing Chain (Lower)
03H-109-465 / 03H 109 465 / 03H109465
03H-109-465-A / 03H 109 465A / 03H109465A
021-109-465-B / 021109465 B / 021 109 465 B / 021109465B
95-51-0-546-501 / 95 51 0 546 501 / 95510546501
95-51-0-546-500 / 95 51 0 546 500 / 95510546500
MFR #'s
Timing Chain (Upper)
03H-109-503 / 03H 109 503
066-109-503-C / 066109503 C / 066 109 503 C / 066109503C
95-51-0-516-900 / 95 51 0 516 900 / 95510516900
95-51-0-550-300 / 95 51 0 550 300 / 95510550300
95-51-0-550-301 / 95 51 0 550 301 / 95510550301
MFR #'s
Timing Chain Guide Rail (Lower)
021-109-469 / 021 109 469 / 021109469
211-094-69 / 211 094 69 / 21109469
MFR #'s
Engine Timing Chain Tensioner
03H-109-467-A / 03H109467 A / 03H 109 467 A / 03H109467A
03H-109-467 / 03H 109 467 / 03H109467
MFR #'s
Timing Chain Guide Rail Bolt (Lower)
021-109-471 / 021 109 471 / 021109471
211-094-71 / 211 094 71 / 21109471
MFR #'s
Engine Timing Chain Guide
03H-109-513-B / 03H109513 B / 03H 109 513 B / 03H109513B
3H1-095-13B / 3H1 095 13B / 3H109513B
MFR #'s
Engine Timing Chain Tensioner
03H-109-509-A / 03H109509 A / 03H 109 509 A / 03H109509A
03H-109-509 / 03H 109 509 / 03H109509
3H1-095-09A / 3H1 095 09A / 3H109509A
MFR #'s
Guide Pin (10x29x40)
WHT-008-987 / WHT 008 987 / WHT008987
071-109-515 / 071 109 515 / 071109515
MFR #'s
Timing Chain Guide Bolt (M8x45)
N10-613-901 / N10 613 901 / N10613901
106-139-01 / 106 139 01 / 10613901
N90-200-601 / N90 200 601 / N90200601
MFR #'s
Pin
066-109-511-D / 066109511 D / 066 109 511 D / 066109511D
661-095-11D / 661 095 11D / 66109511D
MFR #'s
Hex Bolt (M6x16)
N10-082-912 / N10 082 912 / N10082912
N10-082-911 / N10 082 911 / N10082911
MFR #'s
Bolt (M6x58)
N10-116-003 / N10 116 003 / N10116003
N10-116-002 / N10 116 002 / N10116002
MFR #'s
Bolt
N90-355-905 / N90 355 905 / N90355905
MFR #'s
Timing Chain Tensioner Bolt
03H-109-507 / 03H 109 507 / 03H109507
066-109-507 / 066 109 507 / 066109507
066-109-507-A / 066109507 A / 066 109 507 A / 066109507A
066-109-507-D / 066109507 D / 066 109 507 D / 066109507D
3H1-095-07 / 3H1 095 07 / 3H109507
MFR #'s
Crankshaft Seal Rear
021-103-051-C / 021103051 C / 021 103 051 C / 021103051C
211-030-51C / 211 030 51C / 21103051C
021-103-051 / 021 103 051 / 021103051
211-030-51 / 211 030 51 / 21103051
MFR #'s
Oil Pan Gasket Sealer
D17-640-4M2 / D17 640 4M2 / D176404M2
D17-640-4A2 / D17 640 4A2 / D176404A2
MFR #'s
