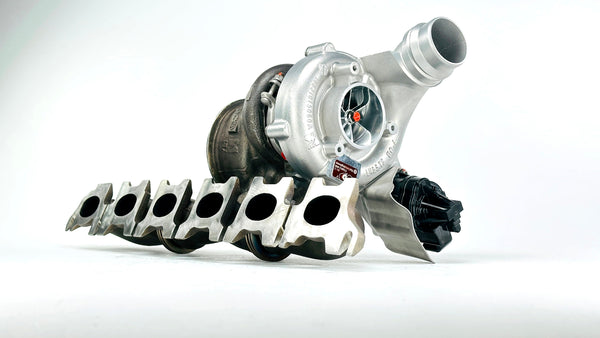

TTE 6xx 6357 BMW B58 Upgrade Turbocharger + Super Size Inlet

TTE6XX 6357 BMW B58 UPGRADE TURBOCHARGERS & SUPERSIZE INLET (images shown with heat shield option)

The largest B58 TTE hybrid based on the Orginal BorgWarner 6 Port turbocharger. Big power without big lag..

To construct a TTE6xx turbo we removed the original compressor wheels and employ a far larger and more efficient 63mm inlet billet wheel and mill the compressor cover to the optimum gap to match the new compressor profile. We also fitted TTE 9 blade Low-Mass 57 mm turbine in the turbine housing for greater flow and lower exhaust gas temperatures at high boost and designed and fitted our upgrade bearing pack for durability.

We also supply TTE upgrade turbo inlet intake for connection

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

• Original Genuine BorgWarner BMW turbocharger as base part
• TTE Billet Milled compressor 6+6 BLADE 63mm inducer
• TTE High-Flow 9 blade Turbine 57mm outlet
• TTE Upgrade Bearing pack
• 550+hp on 99ron, 650hp on 102 ron
• Plug & Play installation
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Software recalibration is required
• 1 YEAR TTE TROUBLE-FREE WARRANTY
• Made in Germany

IF SELECTING TO SEND A TURBO FOR UPGRADE YOU MUST SHIP YOUR ORIGINAL INLET PIPE !

TTE HEAT SHIELD ISOLATION ADD-ON extra cost option that’s available for the turbine housings.

Key Features

• Non-woven silicate fiber surrounded by welded foil
• Stainless steel rigid insulation foil
• High mechanical and vibration resistance, lightweight
• Excellent fluid splash and spill resistance
• Excellent corrosion resistance
• Resilient at continuous temperatures up to 1300°C
• Reduced dimensions compared to turbo blankets
• Reduced engine bay temps
• Performance improvements
• Adjacent component protection
• Up to 600°C lower temps at Isolation surface
