TTE 800 6361 BMW B58 Upgrade Turbocharger + Super Size Inlet (gen 1 / 6 Port)

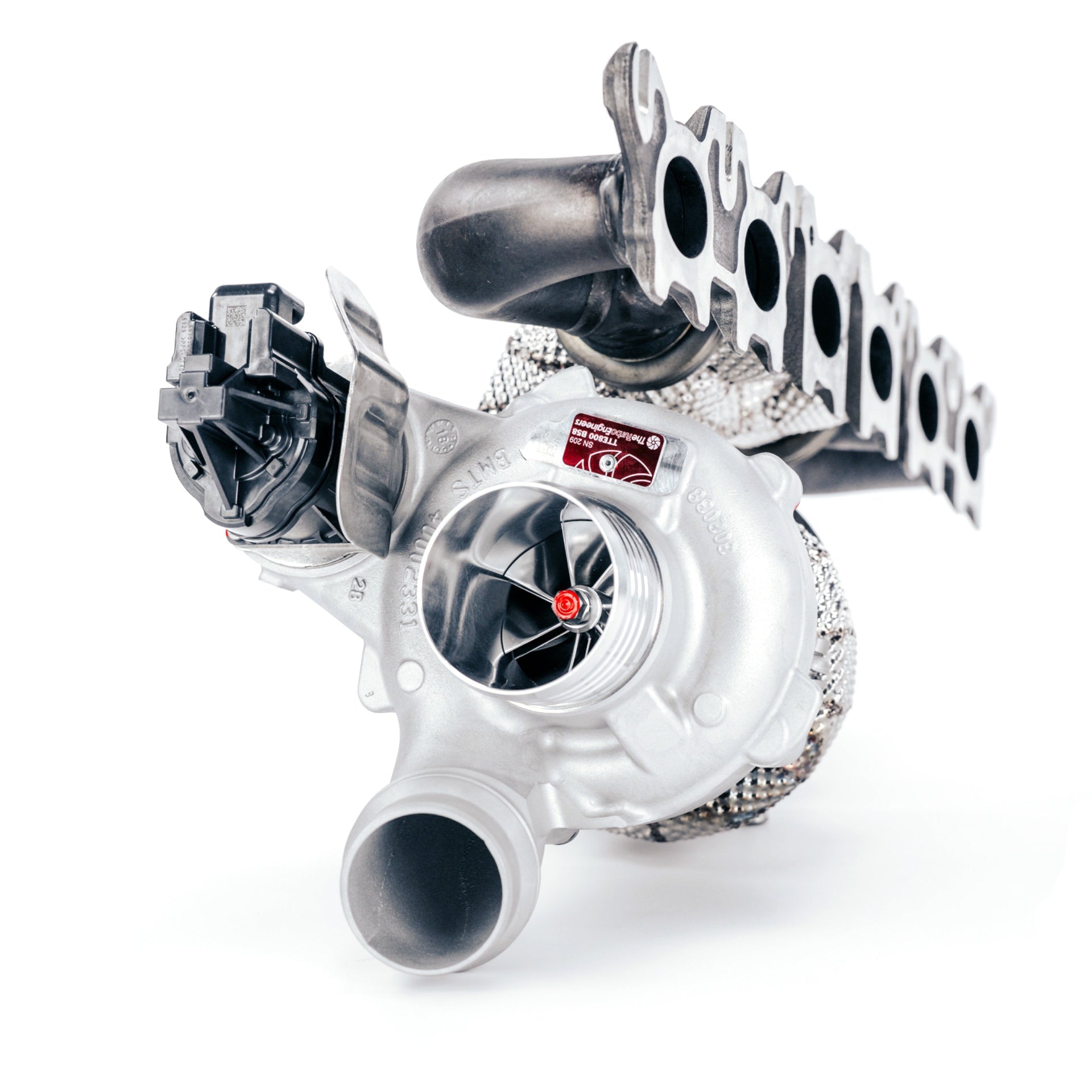

TTE800 6361 BMW B58 UPGRADE TURBOCHARGERS & SUPERSIZE INLET Gen 1, 6 port(images shown with heat shield option)

The largest B58 TTE hybrid based on the Orgiinal MAHLE turbocharger. Big power without big lag..

To construct a TTE800 turbo we removed the original compressor wheels and employ a far larger and more efficient 63mm inlet billet wheel and mill the compressor cover to the optimum gap to match the new compressor profile. We also fitted TTE 9 blade Low-Mass 61 mm turbine in the turbine housing for greater flow and lower exhaust gas temperatures at high boost and designed and fitted our upgrade bearing pack for durability.

We also supply TTE upgrade turbo inlet intake for connection

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.

• Original Genuine MAHLE BMW turbocharger as base part
• TTE Billet Milled compressor 6+6 BLADE 63mm inducer
• TTE High-Flow 9 blade Turbine 61mm outlet
• TTE Upgrade Bearing pack
• 600hp+ on 99ron, 700hp on 102 ron
• Plug & Play installation
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Software recalibration is required
• 1 YEAR TTE TROUBLE-FREE WARRANTY
• Made in Germany
