Turbocharger Repair Kit (Remanufactured) - Audi / 2.0T / B8.5 / allroad / A4 / A5 / Q5 / C7 A6 | J0A145703SX

The GENUINE part, as sold by the dealer.

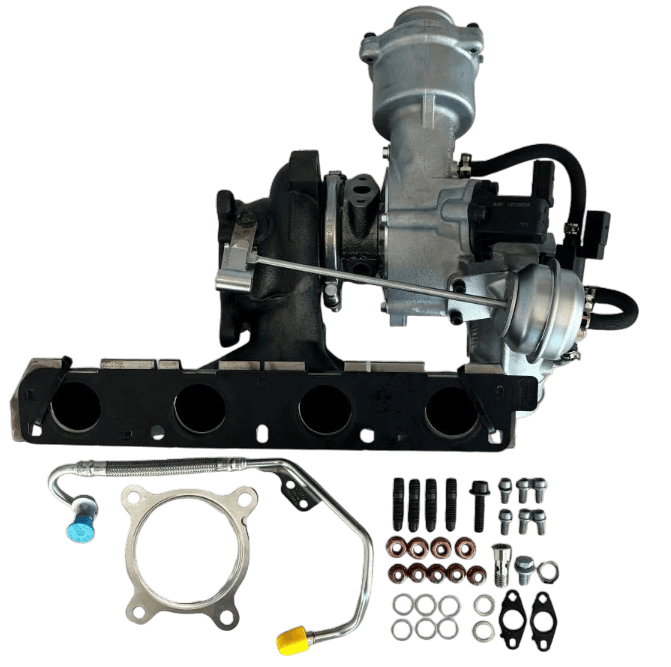

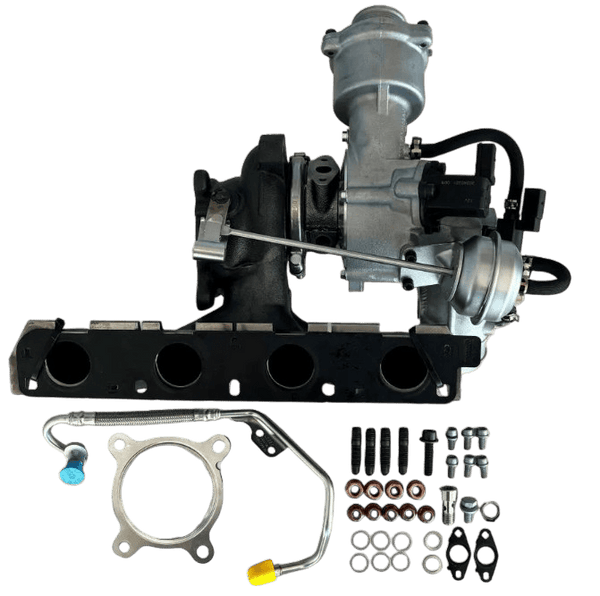

A complete turbocharger repair kit including a new oil inlet hose
and all of the hardware typically used in the repair process.


Includes:

Exhaust Manifold to Cylinder Head:

• Manifold to Cylinder Head - Gasket (1)
• Manifold Lock Nuts (5)

Turbocharger to Catalytic Converter:

• Turbocharger to Catalytic Converter - Gasket (1)
• Exhaust Studs (4)
• Exhaust Lock Nuts (4)

Turbocharger Support Bracket:

• Bracket to Turbocharger - Bolt (1)
• Bracket to Engine Block - Bolt (1)

Turbocharger Misc.:

• Vacuum Line - Ear Crimp Clamp (1)

Turbocharger Oil Feed:

• Oil Inlet Hose (1)
• Banjo Bolt (1)
• Crush Washer (2)
• Oil Inlet Hose Bolt (2)

Turbocharger Oil Return:

• Oil Outlet Hose Gaskets (2)
• Oil Outlet Hose Bolts (4)

Turbocharger Coolant Feed and Return:

• Crush Washer (6)

Part #'s

06H-145-703-SX / 06H145703 SX / 06H 145 703 SX / 06H145703SX

06H-145-703-S / 06H145703 S / 06H 145 703 S / 06H145703S

06H-145-702-R / 06H145702 R / 06H 145 702 R / 06H145702R

06H-145-703-N / 06H145703 N / 06H 145 703 N / 06H145703N

06H-145-703-R / 06H145703 R / 06H 145 703 R / 06H145703R
