Unitronic Carbon Fiber Intake System with Duct and Turbo inlet - VW / Mk8 / GTI | UH070-INA

Looking to maximize airflow and turbo efficiency on your MK8 GTI? Unitronic’s Cold Air Intake System with Air Duct and High Flow Turbo Inlet Kit work together as a complete intake assembly for the 2.0TSI EVO4 engine.

The Intake System is designed to increase air velocity and throttle response while helping reduce intake air temperatures and minimizing turbo lag. It also enhances induction sound, amplifying both turbocharger and diverter valve acoustics for a more engaging driving experience. Unitronic's Carbon Fiber Air Duct also helps to increase air flow and turbo effeciency by taking advantage of both air inlets available in the OEM grill.

Paired with Unitronic's High Flow Turbo Inlet, which is comprised of a billet-machined, direct bolt-on inlet and oversized silicone hose, this system delivers substantial airflow improvements while being compatible with the stock turbo or Garrett 2260S turbo.

Features and Benefits

• Optimized Design for Maximum Performance:
  Unitronic specifically developed its air intake system to provide increased air velocity, and throttle response, while also decreasing air intake temperatures and turbo lag.
• 2/2 Twill Prepreg Carbon Fiber Weave:
  High quality material to give you a lightweight, durable and resistant airbox.
• Oversized Airbox Air Inlet for Increased Airflow:
  Airflow capacity is increased when combined with Unitronic’s Carbon Fiber Air Duct.
• Billet Turbo Inlet
  At the Turbo Inlet's core is a CNC-machined billet aluminum inlet featuring a smooth taper that increases air velocity just before the turbine—much like a velocity stack.
• Stainless Steel Hardware:
  Rust resistant hardware that will outlast your vehicle.
• Quality Silicone Components:
  Multi ply silicone turbo inlet hose is strong enough to avoid collapsing when the engine is under hard acceleration.
• Autoclave Construction:
  The curing process is completed in an autoclave to eliminate resin voids thus ensuring a strong component. A UV and heat resistant clear coat is then added on top of the carbon fiber to protect it against discoloration and give it a nice, smooth surface finish.
• Oversized Airbox Air Inlet for Increased Airflow:
  Airflow capacity is increased when combined with Unitronic’s Carbon Fiber Air Duct.
• Enhanced Turbocharger Sound:
  Unitronic’s Cold Air Intake Systems feature an open element design which results in a more audible sound from your vehicle’s turbocharger and Diverter Valve (DV).
• Airbox Water Drainage Provision:
  Open slots located at the bottom of airbox allow for the drainage of water.
• Proprietary 3-inch Filter:
  Unitronic’s proprietary 3’’ dry cotton filter is engineered to maximize air flow with its radius base while keeping dust and foreign debris away from your engine.
• Smooth Flow Transition:
  Ferrule provision on air filter base to ensure a smooth and linear airflow transition between elements.
• Direct Bolt-On Fitment with OEM Mounting Locations:
  Utilizes all OEM mounting locations through use of Unitronic’s proprietary EPDM rubber mounting grommets.

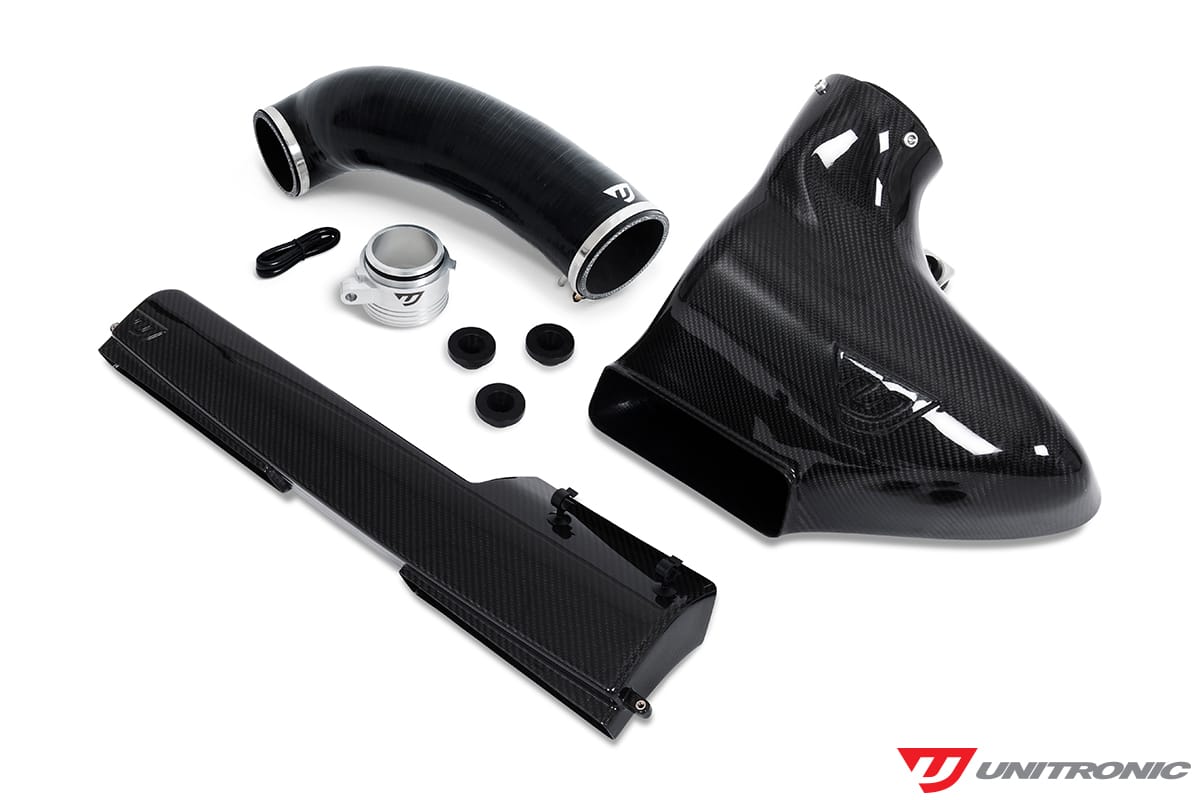

Hardware Included

• Carbon Fiber Air Box
• Carbon Fiber Air Duct
• 3-inch Powdercoated Aluminum Inner Intake Tube
• Billet Aluminum Turbo Inlet
• Multi-Ply Silicone Turbo Inlet Hose
• Hardware Kit
• Proprietary 3-inch Dry-Filter (Cotton)

Installation

The Unitronic Carbon Fiber Intake System and Turbo Inlet for the MK8 GTI equipped with the 2.0TSI EVO4 engine is designed to be simple to install with all necessary hardware included. Installation time will take approximately one hour including the removal of the factory intake and installation of your new system.

• Intake System Installation Instructions
• Air Duct Installation Instructions
• Turbo Inlet Installation Instructions
