Verkline Bump Steer Adjustable Front Tie Rod Ends – VW/Audi / Mk8 / 8Y / Golf / A3 / S3 / RS3 | WAS-513

WAS-513 Fitting Instructions

For performance driving toe angle is one of the most important suspension setup parameters. To control it over the entire range of coil over travel, we need to measure and adjust bump steer which could be needed, especially when we have changed other suspension parameters like ride height.

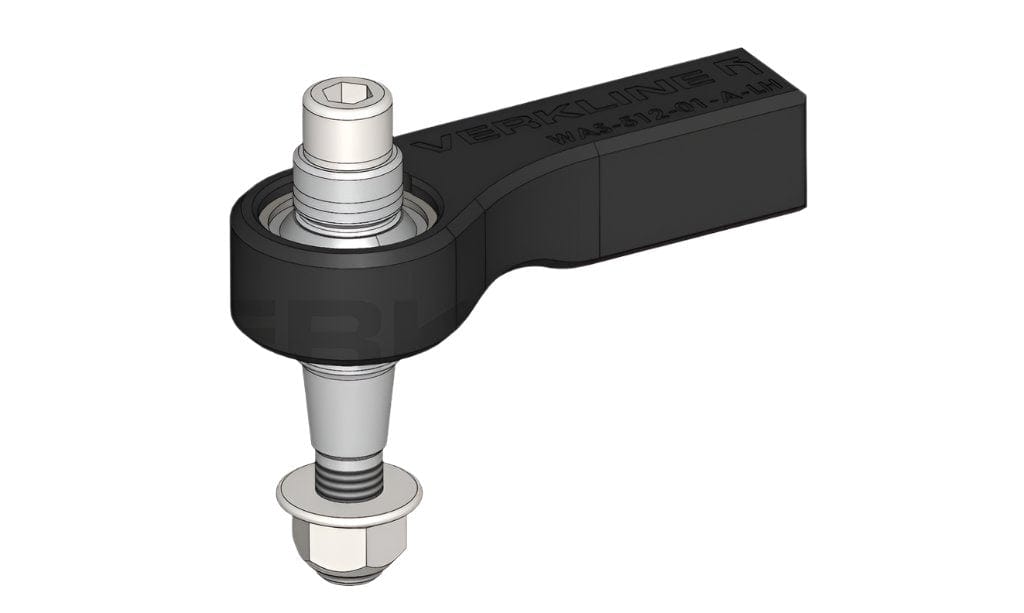

With Verkline tie rod ends it is possible to adjust front bump steer by relocating the ball joint lower or higher with attached adjustment spacers (see picture below). There are 6mm of them combined and You should always use all of them. To replicate OEM geometry put 2 mm of adjustment spacers below the ball joint and 4mm above it. If You want to change Your bump steer simply relocate some of the adjustment spacers from below the ball joint to its top, or the other way around.

Product functionalities:

Stiffer and stronger than OEM – designed to withstand all track racing abuse.
Gives the possibility of adjusting the front bump steer.
Uses spherical bearings which give direct and predictable steering response.

Features:

Precisely CNC machined out of aluminum and high strength steel.
Black coating for a nice look and corrosion resistance.
Compatible both with OEM and Verkline uprights.

What is included:

Two aluminum tie rod ends (left and right – set for one car).
Set of bolts.
Two high strength pins.
Set of spacers for adjusting.
Two high quality PTFE motorsport uniballs.
Two turnbuckles with super slim nuts.
Printed install instructions.

Used in cars (type numbers in brackets):

• 2015 – 2020 – RS3 [8V], RS3 FL [8V]
• 2020 – Now – A3/S3 [8Y], RS3 [8Y], Golf 8 FWD, Golf 8 AWD, Leon KL (mk4) (MQB evo)
• 2029 – Now – Volkswagen Golf/GTI/R (Mk8)

Note: Installation of this rear insert kit will introduce some additional NVH (noise, vibration, and harshness) transfer into the cabin.
