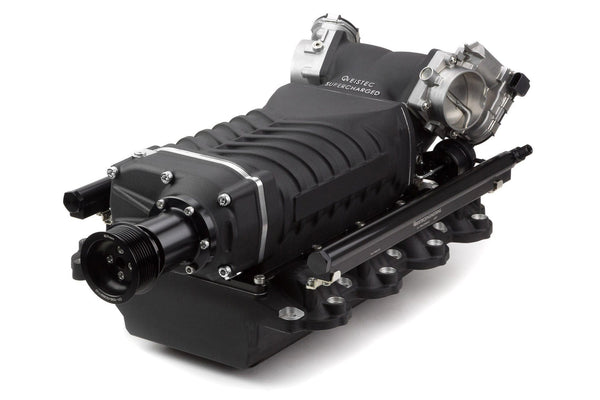

Weistec Stage 3 Mercedes M156 Supercharger System | 01-156-00338-7
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
Race-only applications. Requires High Flow Exhaust, Removal of Secondary Air Injection Valves, ROW Airboxes,and Spark Plugs. Built Transmission Recommended.
COMPARE SUPERCHARGER STAGES
| Stage 1 | Stage 2 | Stage 3 | |
|---|---|---|---|
| Specifications |
- 2.3L Twin Screw Compressor |
- 2.3L Twin Screw Compressor |
- 3.0L Twin Screw Compressor |
| CARB Legal |
YES |
NO |
NO |
| Horsepower (WHP) | 637 | 672 | 740+ |
| Torque (ft-lb) | 560 | 662 | 630+ |
| Requirements |
- Stock Vehicle |
- High Flow Exhaust |
- High Flow Exhaust |
| Recommended Upgrades |
- Weistec Air Filters |
- Weistec Air Filters |
- Weistec Air Filters |
| Price USD** |
$11,999 |
$11,999 |
$15,599 |
**Price may vary by vehicle model.
The Weistec Stage 3 Supercharger System was designed and introduced to meet the needs of customers that kept asking us for more power even after installing our Stage 2 system. Incorporating many years of Mercedes supercharger knowledge, the larger 3.0L twin-screw is the pinnacle of Weistec's supercharger systems. Many people now go straight to Stage 3 from stock, but those that already have a Stage 1 or a Stage 2 supercharger can get our Stage 3 upgrade system to convert to Stage 3
Using our 3.0L Twin Screw, we have set the record for the World's Fastest Mercedes with our Stage 3 M156 System and supporting Weistec products, generating engine power levels exceeding 1000 Horsepower.
8-RIB PULLEY SYSTEM
Our Stage 3 Supercharger runs an 8-Rib pulley system. The larger supercharger unit takes more effort to spin up to speed. The standard 6-rib belt drives on a stock M156 engine and on the Stage 1 and Stage 2 superchargers are simply not up to the task of spinning the 3.0 supercharger unit up for high power levels. With our included 8-rib conversion, the entire belt drive is upgraded to switch to an 8-rib belt which offers a substantial increase in belt gripping surface.
HEAT MANAGEMENT INCLUDED
The Stage 3 Supercharger System features a liquid-to-air intercooler core rated to 1000hp, a Johnson CM30 30 liter per min intercooler water pump, Cross flow heat exchanger, and an intercooler water recovery tank. For those looking for more cooling, we offer our trunk ice tank (not included) which substantially increases liquid volume and allows for icing of the intercooler system when drag racing
TUNE INCLUDED
Every supercharger comes with a tune. Our calibration team prepares a tune for your vehicle and all the mods that your build is running. You can receive your tune in person, at an Authorized Dealer, by mail, or remotely using the Cypher Handheld Programmer (Not included). For more information check out our How to Tune Page.
IMPROVED FUELING
While the Stage 1 and Stage 2 systems make power levels that are within the capability of the factory fuel injectors, Stage 3 goes well beyond those limits. This is why we include a set of matched and custom spec 650cc injectors along with the 8an billet fuel rail setup that is included with all of our supercharger systems.
KEY FEATURES:
- 3.0L Twin-Screw Compressor Module (Why Twin-Screw)?
- 1000hp Liquid to Air Intercooler Core
- High Flow Cast Aluminum T6 Hardened Lower Manifold
- High Flow Cast Aluminum T6 Hardened Throttle Body Inlet Y
- 45mm Boost Bypass Assembly
- 8-Rib Direct Drive Belt System
- SFI Approved Light Weight 8-Rib Crank Damper
- Crank Pin Drill Tool
- Billet Aluminum Direct Drive Cradle System
- Hard Anodized Billet Aluminum Serpentine Idlers
- Johnson CM30 30 Liter/Min Intercooler Water Pump
- Intercooler Water Recovery Tank
- Cross Flow Heat Exchanger
- High Flow Fuel Rail System
- High Capacity Fuel Injectors
- Molded Silicone Couplers
- Power-Steering Reservoir Relocation Assembly
- Smaller Diameter Supercharger Pulley
- Weistec Engineering Stage 3 Supercharger System ECU Reflash
* Allow 5-6 weeks for orders to be shipped. Supercharger systems are made to order.
